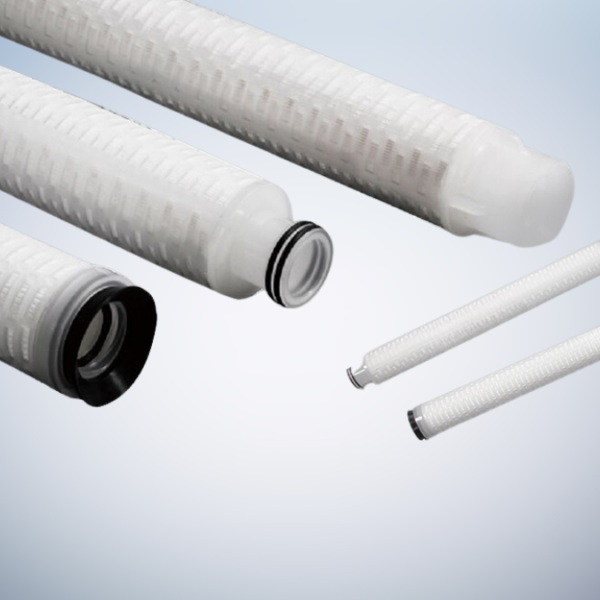

Cobetter® 64 Series lron Removal filter cartridges are made of advanced absolute-rated membrane. Features include large filtration area, backwash ability, low differential pressure, and highflow rates. They can remove suspended impurities such as iron and copper oxide from condensate water, thus protecting resin from contamination and extending service life of the polishing treatment.
Features
- Uniquely designed support provides up to 200 times of backwashing ability
- Strengthened cage and core provide perfect end cap sealing two part welding and weld joint make for a more stable filtration performance
- High dirt holding capacity, large filtration area and longer service life
- Nano fiber filtration media provides high retention efficiency and high dirt holding capacity
- Multiple end cap options allow for easier fit in current filter housings
Applications
- Power plant condensate water filtration
Specifications
Material of Construction
| Filter Medium | Polypropylene |
| Support Layer | Polypropylene |
| Cage / Core | Polypropylene |
| O-rings | Viton |
Operating Conditions
| Max. Operating Temperature | 80°C |
| Max. Operating Differential Pressure | 0.4 MPa/21°C 0.24 MPa/70°C |
| Recommended Operating Flow Rate | 0.5m³/h (10 inch） |
| Recommended Back-Flush Water Flow Rate | 0.45~0.68m³/h |
| Recommended Back-Flush Air Flow Rate | 3.4~5m³/h |
Operating Characteristics
End Cap
Ordering Information
| Type | Removal Rating | Length | End Cap | O-ring |
| 64 | 0060 0.6µm | 30 30 inch | N Internal Thread+Screw | E EPDM |
| 0120 1.2µm | 40 40 inch | R 222/Fin | ||
| 0450 4.5µm | 60 60 inch | L LB+Screw | ||
| 1000 10µm | 70 70 inch | |||
| 2000 20µm | 80 80 inch | |||
| 4000 40µm |
*Example：64006030NE (64，0.6µm，30 inch, Internal Thread+Screw, EPDM)
