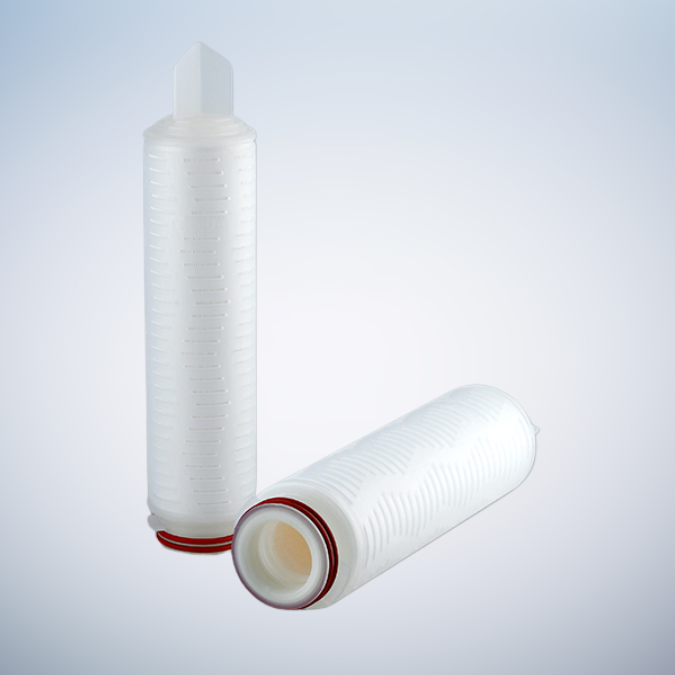

Cobetter BevClear BW Filter Cartridges are constructed of nanofiber media with support layers that allow backwash cleaning efficiency. Characterized by its high dirt holding capacity and flow rates, they effectively remove particles. It is recommended for fine filtration in brewing applications.
Features
- Special design ensures backwash cleaning and therefore increases filter lifetime
- Super fine nanofiber media provides high dirt holding capacity and retention efficiency
- Provides defined porosity with high filtration area
- No fiber releasing per FDA 21CFR
- Complies with Food Contact Regulations: FDA 21CFR177-182 and 1935/2004 EC
Specifications
Materials of Construction
| Filter Media | Super Fine Nanofiber |
| Cage/Support | Polypropylene (Nanofiber) |
| Core/End Caps | Polypropylene |
Operating Conditions
| Max. Operating Pressure | 6.9 bar (100 psi) at 25°C 4.0 bar (58 psi) at 60°C 2.4 bar (35 psi) at 80°C |
| Max. Differential Pressure (Forward) | 6.9 bar (100 psi) at 25°C 4.0 bar (100 psi) at 60°C 2.4 bar (35 psi) at 80°C |
| Max. Differential Pressure (Reverse) | 3.0 bar (44 psi) at 25°C 1.0 bar (15 psi) at 80°C |
| Sterilzation | Inline Steam Sterilization: 20 cycles for 30 min at 121°C Hot Water Sterilization: 50 cycles for 30 min at 85°C |
| Cleaning Solution | 2% NaOH Solution @≤ 65°C |
| Effective Filtration Area | 0.6m² / Ø71-10 inch 1.12m² / Ø64-30 inch |
Flow Rate Characteristics
Ordering Information
| Series | Removal Ratings | End Cap | Nominal Length | Seal Material | Industry |
| BCBW Ф71
Ф64 |
B PPB | DOE Double Open End | 05 5 inch | S Silicone | F |
| D PPD | HTC 222/Flat (PBT Insert) | 10 10 inch | E EPDM | ||
| G HAG | HTF 222/Fin (PBT Insert) | 20 20 inch | V Viton | ||
| H HAH | HSF 226/Fin (PBT Insert) | 30 30 inch | |||
| K HAK | SSF 226/Fin (SS Insert) | 40 40 inch | |||
| U PPU | SSC 226/Flat (SS Insert) | ||||
| STF 222/Fin (SS Insert, 3 Tabs) |
* Example：BCBWBDOE05SF (BCBW, PPB, Double open end，5 inch，Silicone，Food & Beverage)
