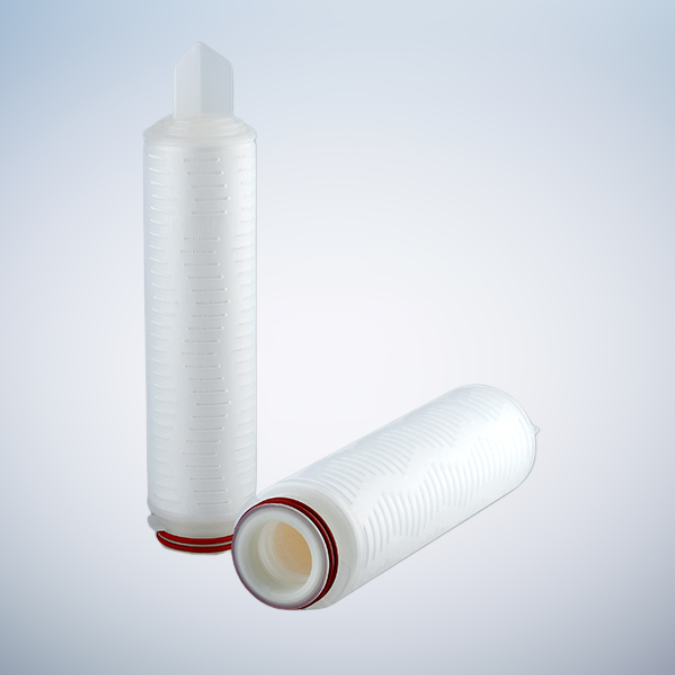

Cobetter BevClear GF Plus Filter Cartridges are composed of positive Zeta modified microfiber media and ideal for the removal of contaminants such as colloids, yeast, and particles in brewing applications. This advanced media has higher dirt holding capacity combined with efficiency. The filter is characterized by high particle efficiency compared to other polypropylene filters.
Features
- High dirt holding capacity and excellent particle retention.
- Ideal for the retention of colloids
- Low pressure drop and high flow rates and long service life
- Excellent chemical compatibility
Flow Rate Characteristics
Specifications
Materials of Construction
| Filter Media | Glass Micro Fiber |
| Cage/Support | Polypropylene (Nanofiber) |
| Core/End Caps | Polypropylene |
Operating Conditions
| Max. Operating Pressure | 6.9 bar (100 psi) at 25°C 4.0 bar (58 psi) at 60°C 2.4 bar (35 psi) at 80°C |
| Max. Differential Pressure (Forward) | 6.9 bar (100 psi) at 25°C 2.4 bar (35 psi) at 80°C |
| Max. Differential Pressure (Reverse) | 3.0 bar (44 psi) at 25°C 1.0 bar (15 psi) at 80°C |
| Sterilzation | Inline Steam Sterilization: 20 cycles for 30 min at 125°C ( Differential Pressure < 30kPa ) Hot Water Sterilization: 50 cycles for 30 min at 85°C |
| Cleaning Solution | 2% NaOH Solution @≤ 65°C |
| Effective Filtration Area | 0.26m² / Ø71-10 inch |
Ordering Information
| Series | Removal Ratings | End Cap | Nominal Length | Seal Material | Industry |
| BCGP Ф71 | 0020 0.2µm | DOE Double Open End | 05 5 inch | S Silicone | F |
| 0025 0.25µm | HTC 222/Flat (PBT Insert) | 10 10 inch | E EPDM | ||
| 0045 0.45µm | HTF 222/Fin (PBT Insert) | 20 20 inch | V Viton | ||
| 0080 0.8µm | HSF 226/Fin (PBT Insert) | 30 30 inch | |||
| 0100 1.0µm | SSF 226/Fin (SS Insert) | 40 40 inch | |||
| 0300 3.0µm | SSC 226/Flat (SS Insert) | ||||
| 0500 5.0µm | STF 222/Fin (SS Insert, 3 Tabs) |
* Example：BCGP0020DOE05SF (BCGP，0.2µm，Double open end，5 inch，Silicone，Food & Beverage)
