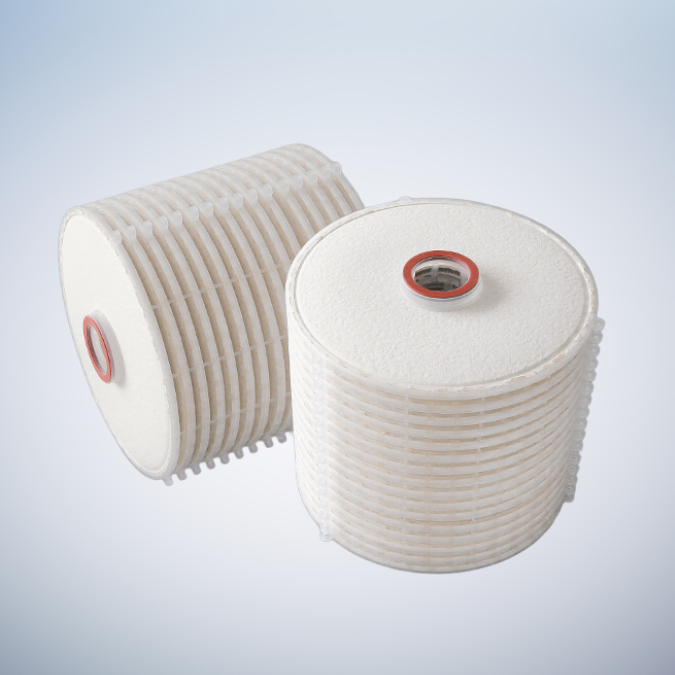

CSD Filter Series constructed of high quality lignocellulose material and inorganic filter aid. The inner 3-D crisscrossing structure allows it to function as a depth filter while providing excellent filtration efficiency, high dirt holding capacity, and longer lifetime. Filter paper is produced automatic production lines. All raw materials are tested using strict quality control procedures to ensure filter quality and performance during use.
Features
- Filter media composed of lignocellulose and inorganic filter aids
- Gradient filter structure provides high dirt holding capacity and retention efficiency
- Low initial pressure difference and long service life
- Positive Zeta charge results in removal efficieny for host DNA, HCP,etc.
Specifications
Materials of Construction
| Filter Medium | Cellulose diatomite filter aid and ionic wet-strength resin |
| Cage | Polypropylene |
Operating Conditions
| Max.Operating Temperature | 80°C |
| Max.Differential Pressure | 2.1bar/25°C |
| Flush | Pure water 50 L/m²Flow rate 10 lpm/m² |
| Steaming Sterilize (Autoclave) | 121°C / 30min |
Filtration Area
| Number of lenses | Filtration Area | |
| Ø12″ | Ø16″ | |
| 9 | 0.9 m² | 2.1 m² |
| 12 | 1.1 m² | 2.8 m² |
| 15 | 1.4 m² | 3.5 m² |
| 16 | 1.5 m² | 3.7 m² |
Ordering Information
| Name | Removal Ratings | Grade | End Cap | Diameter | Number of Lenses | Seal Material | 行业 |
| CSD | 0004 0.04-0.2µm | SA Standard | DOE Double open end | 12 12 inch | S 7 Layers | S Silicone | C |
| 0020 0.2-0.4µm | PB Pharmaceutical | 16 16 inch | N 9 Layers | E EPDM | F | ||
| 0040 0.4-0.6µm | PC General Industry | T 12 Layers | V Viton | ||||
| 0060 0.6-0.8µm | M 14 Layers | T Soft PTFE | |||||
| 0100 0.8-1.5µm | F 15 Layers | F Hard PTFE | |||||
| 0150 1.5-3.0µm | D 16 Layers | ||||||
| 0300 3.0-6.0µm | |||||||
| 0400 4.0-9.0µm | |||||||
| 0500 5.0-12.0µm | |||||||
| 0600 6.0-15.0µm | |||||||
| 0700 7.0-18.0µm | |||||||
| 0800 8.0-20.0µm | |||||||
| 0900 9.0-30.0µm | |||||||
| RELP 0.5-0.8µm | |||||||
| H003 0.02-0.2µm | |||||||
| H004 0.04-0.2µm |
*Example：CSD0004SADOE12SSC (CSD, 0.04-0.2µm，Standard，Double open end，12 inch，7 Layers，Silicone，Industrial)
