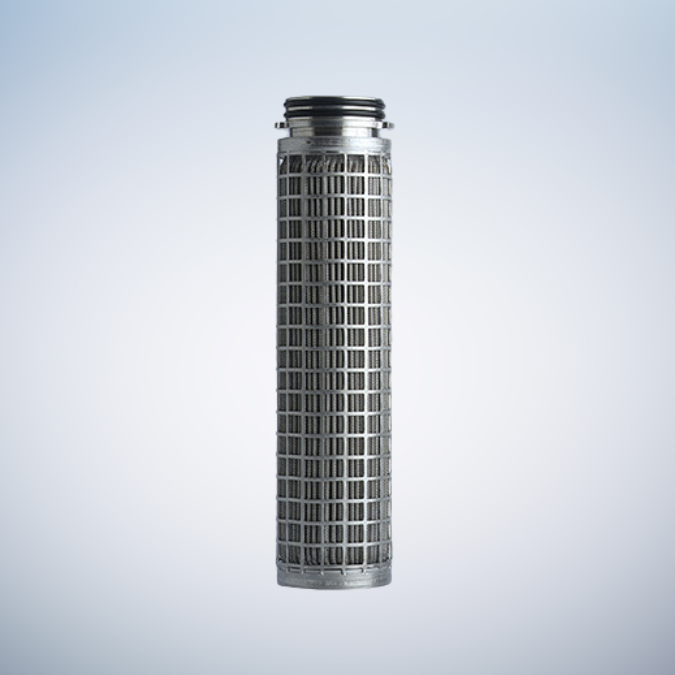

Cobetter PSSC Pleated Stainless Steel Wire Cloth Filter Cartridges are composed of 316 stainless steel wire cloth. The pleated structure provides a large filtration area, which results in longer service life and high flow rates. PSSC Filter Cartridge has superior strength and thermal resistance, which makes it the ideal filter for high pressure and temperature applications.
Features
- ALL-Stainless Steel Construction
- Pleated Wire Cloth
- Inside Support Layer
- Outside Protection Net Available
- Homogenous Pore Sizes
- High Temperature; Corrosive and Oxidation Resistant
- High Pressure Back-Flushing Available
- Able to be Cleaned and Reused
- No Fiber Releasing
Specifications
Materials of Construction(Five Layers)
| Filter Media | 316L Stainless Steel Felt |
| Cage/Support | 316L Stainless Steel |
| Core/End Caps | 316L Stainless Stee |
| Outside Protection Net(Optional) |
Outside protection net recommended when the operating pressure is up to 0.2 MPa |
Nominal Dimensions①
| Diameters | 65mm |
*①Additional Diameter Specifications Available Upon Request
Configurations
| Double Open-End (DOE) |
| Single Open-End (SOE) |
Operating Conditions
| Max. Differential Pressure | 8.6 bar / 21°C (forward flow) 2.0 bar / 21°C (reverse flow |
| Recommended Continuous Operating Temperature Range |
75°C to +200°C Note: Temperature dependant on o-ring compound |
Parameters
| Code | Liquid Pore Size (µm) | Removal Ratings(µm) | Pore Efficiency | Absolute Removal Rating(µm)② | Average Air Permeability | Flow Rate (m³/h)④ |
| 1 | 2 | 0.8 | 38% | 8-9 | 2.35 | 1.8 |
| 2 | 5 | 1 | 12-14 | 2.42 | 2 | |
| 3 | 10 | 3 | 16-18 | 3 | 2.1 | |
| 4 | 20 | 15 | 28-32 | 4.5 | 2.5 | |
| 5 | 40 | 25 | 58-63 | 7.1 | 3.5 | |
| 6 | 100 | 85 | 125-130 | 16.2 | 5 |
②Bubble Point Testing
③Tested according to GB/T8786; Differential Pressure of 200Pa (in air)
④Liquid Viscosity of 1 CP·S; diameter of 65mm; length of 10inches; pressure of 1.0bar
Length and Area⑤
| Length | Filtration Area⑥ |
| 5 in. (127 mm) | 0.096m² |
| 10 in. (254 mm) | 0.19m² |
| 20 in. (508 mm) | 0.38m² |
| 30 in. (762 mm) | 0.57m² |
| 40 in. (1016 mm) | 0.76m² |
⑤Length and Other Sizes Are Customizable
⑥Tested Filter Diameter is 65mm
Cleaning and Washing
| Contaminants | Methods |
| Metal/rigid particles | Ultrasonic cleaning with frequent vibrations to remove particles High pressure spray prior to reusing |
| Flocculents (hair/strips/etc.) | high temperature baking, carbonizing, and vaporizing |
| Colloids | Soaking in a solvent to dissolve colloid |
Ordering Information
| Series | Removal Ratings | End Cap | Nominal Length | Diameter | Seal Material | Industry |
| PSSC | 0100 1.0µm | DOE Double open end | 05 5 inch | D25 25mm | S Silicone | C |
| 0200 2.0µm | TC 222/Flat | 10 10 inch | D30 30mm | E EPDM | F | |
| 0500 5.0µm | SC 226/Flat | 20 20 inch | D50 50mm | V Viton | P | |
| 1000 10µm | TF 222/Fin | 30 30 inch | D65 65mm | P PFA | ||
| 1500 15µm | SF 226/Fin | 40 40 inch | D70 70mm | F PTFE | ||
| 2000 20µm | L Screw | D Custom | D Custom | |||
| 3000 30µm | D Custom | |||||
| 6000 60µm | ||||||
| 100H 100µm |
*Example：PSSCW0100DOE05D25SF (PSSC，1.0µm，Double open end，5 inch，25mm，Silicone，Chemical)
