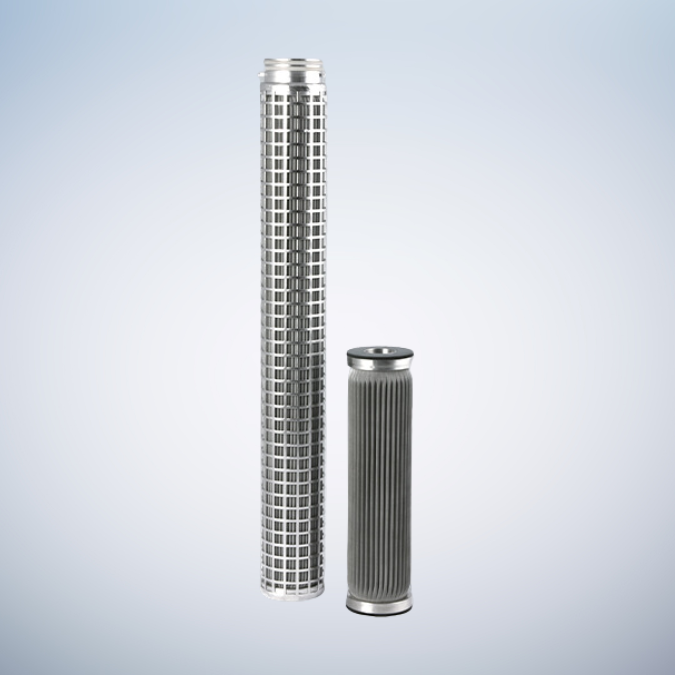

Cobetter PSSF Stainless Steel Pleated Felt Filter Cartridges are composed of stainless steel sintered felt shaped during the pleating process. These filters have a large filtration area with high flow rates and low pressure drops. The unique stainless steel sintered felt is made from stainless steel fibers which have been sintered to form a high porous depth filtration material. PSSF Filter Cartridges features include a graded pore size from coarse (upstream) to fine (downstream), which results in a higher dirt holding capacity with excellent filtration efficiency and longer service life. These filters are widely used in steam filtration or liquids with high viscosities, e.g. sugars and syrups.
Features
- Absolute-rated
- All stainless steel construction excellent chemical compatibility
- Excellent chemical compatibility and high temperature resistance
- Specialized alloy for high corrosion and oxidation resistance
- Corrosive and oxidation resistant
- High dirt holding capacity and long service life
Specifications
Material of Construction
| Filter Media | 316L Stainless Steel Felt |
| Cage/Support | 316L Stainless Steel |
| Core/End Caps | 316L Stainless Stee |
Operating Conditions
| Recommended Continuous Operating Temperature Range |
-75°C to +200°C Note: Temperature dependant on o-ring compound |
| Max. Differential Pressure | 5.0 bar / 21°C (forward flow) 2.0 bar / 21°C (reverse flow) |
| Hot Water Sterilization | 85°C/30min @ Max. Differential Pressure of 2bar |
| Cleaning Solution | Reverse Rinse by Pure Water/Compressed Air @ ≤2bar; Ultrasonic Rinsing |
| Effective Filtration Area | 0.12m² / 10inch |
Parameters
| Removal Rating in Liquid μm |
Removal Rating in GAs μm |
Pore Efficiency % |
Dirt Holding Capacity mg/cm² |
Average Air Pemeability① L/dm²min |
Flow Rate② m³/h |
| 3.0③ | 0.5 | 70% | 7.9 | 10 | 0.8 |
| 5.0 | 1.0 | 75% | 5.0 | 47 | 1.3 |
| 7.0 | 1.5 | 76% | 6.5 | 63 | 1.6 |
| 10.0 | 2.0 | 75% | 7.8 | 105 | 2.0 |
| 25.0 | 16 | 80% | 19.0 | 355 | 2.5 |
| 40.0 | 25 | – | – | – | – |
| 60.0 | 45 | – | – | – | – |
①Testing Performed According to GB/T5453; Testing DP is 200Pa; Testing Medium is Air
②Testing Liquid Viscosity is 1CP.S; Filter Tested with 60mm diameter and 300mm length; Testing Pressure is 1.5 bar
③Bekaert Filtration Media
Retention Rates: PSSF v. TIC Titanium Filter
| PSSF | TIC Titanium Filter | |
| Materia | SS Sintered Felt (no ber releasing) | Metal Powder Metal Powder (will release after long term use) |
| Strength | Pleated Structure High Temperature & Pressure Resistance | High Temperature (Sintered) Unstable Pressure |
| Retention Rates | Absolute-Rated EFA: up to 0.12m² | Depth Filter EFA: 0.056m² |
Notes on Cleaning
Ultrasonic cleaning is recommended rather than back flush cleaning due to its depth and porous filtration media construction
Ordering Information
| Series | Removal Ratings | End Cap | Nominal Length | Diameter | Seal Material | Industry |
| PSSF | 0200 2.0µm | DOE Double Open End | 05 5 inch | D25 25mm | S Silicone | C |
| 0300 3.0µm | TC 222/Flat | 10 10 inch | D30 30mm | E EPDM | F | |
| 0500 5.0µm | TF 222/Fin | 20 20 inch | D50 50mm | V Viton | P | |
| 0700 7.0µm | SC 226/Flat | 30 30 inch | D65 65mm | P PFA | ||
| 1000 10µm | SF 226/Fin | 40 40 inch | D70 70mm | F PTFE | ||
| 2500 25µm | L Screw | |||||
| 4000 40µm | ||||||
| 6000 60µm |
*Example：PSSFW0200DOE05D65SF (PSSF，2.0µm，Double open end，5 inch，25mm，silicone，Chemical)
