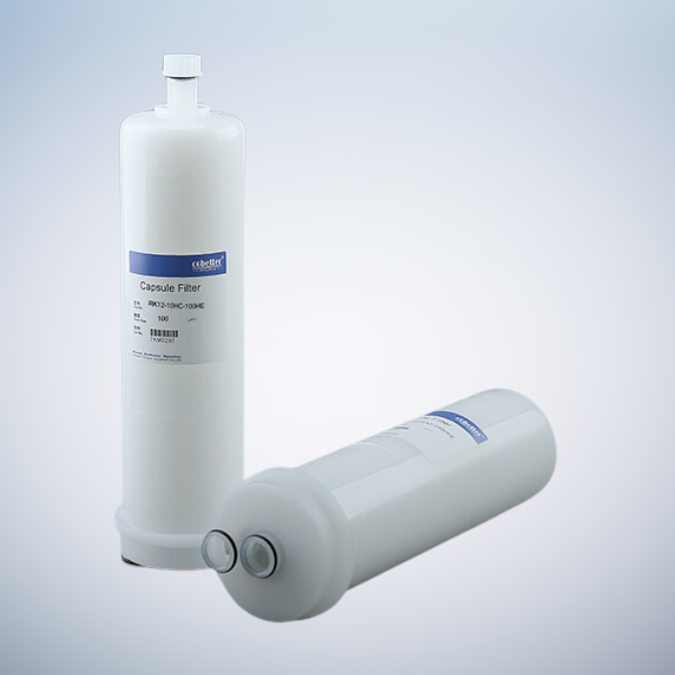

The unique structure design of RK12 Series filter cartridge makes no extra treatment costs of replacement and housing cleaning, no physical touch of feed liquids, fit for the filtration of poisonous and harmful slurry. Capsule structure reduces the gap between the filter housing and the inner core, which means, decreased slurry residues. The inner core could be selected upon request, length 5”/10”/20” are optional. The new drainable patented-design structure performs the perfect recycling of slurry. It’s suitable for RK12 filter housing.
Specifications
| External Diameter (mm) | 77 |
| Internal Diameter (mm) | 76.4 |
| Total Length (mm) | 195 / 325 / 583 |
| Filter Medium | PP |
| End Cap | PP |
| Core | PP |
| Cage | PP |
| Max.Operating Temperature | 80°C |
| Max. Operating Pressure Differential (20°C) | 0.3Mpa (3.0bar) |
| Design Pressure | 0.7Mpa (7.0bar) |
Flow Characteristics
Internal Structure
Installation
Ordering Information
| Series | Vent Mode | Length | Micro Rating | O-Ring |
| RK12 | default With Vent Valve | 5 5 inch | 1500 15µm | E EPDM |
| 10 10 inch | 2000 20µm | |||
| 20 20 inch | 3000 30µm | |||
| 3500 35µm | ||||
| 4000 40µm | ||||
| 5000 50µm | ||||
| 6000 60µm | ||||
| 7000 70µm | ||||
| 7500 75µm | ||||
| 8000 80µm | ||||
| 9000 90µm | ||||
| 100H 100µm | ||||
| 125H 125µm | ||||
| 150H 150µm | ||||
| 200H 200µm | ||||
| 250H 250µm | ||||
| 300H 300µm | ||||
| D Customization |
*Example：RK1251500E (RK12，With vent valve，5 inch，15µm，EPDM)
