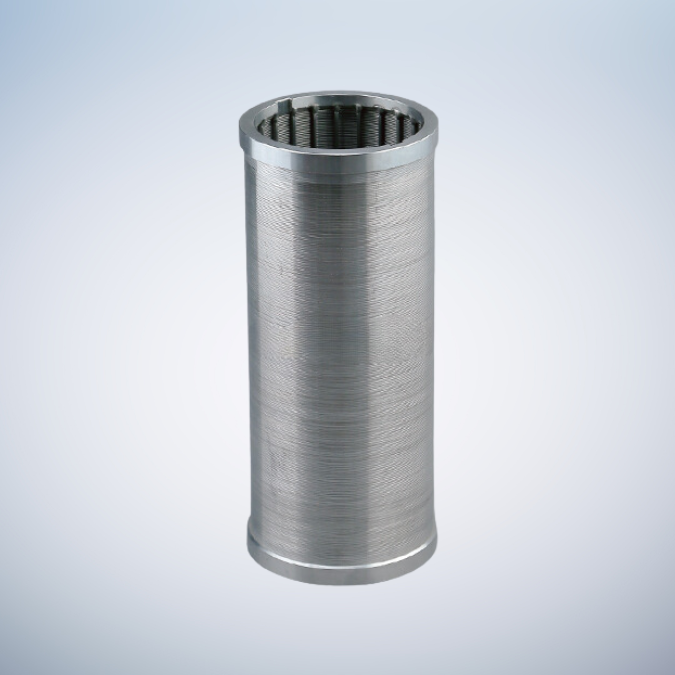

Wedge-shaped structure is fit for rigid particles filtration in high-viscosity slurry. High filtering accuracy, not easy to damage while regular cleaning and fine recycling features, efficiently lower usage cost under high temperature and pressure conditions. Support special custom on site operation.
Features
- High micro rating
- Reusing
- High durability
Specifications
Material Construction
| Mesh Filter | 304 / 316L |
| Connection | 304 / 316L |
Operating Condition
| Filter Medium | 304 / 316L |
| Max. Operating Temperature | 480°C |
| Max. Operating Pressure Differential | 0.5Mpa (5.0bar) |
Ordering Information
| Series | Micro Rating | Connection | Length | O-Ring |
| SSQC | 2000 20 µm | L Screwed | 10 10 inch | E EPDM |
| 3500 35 µm | TC 222/Flat | 20 20 inch | P TEV | |
| 6000 60 µm | SC 226/Flat | D Customization | ||
| 100H 100 µm | F Flange Plate | |||
| 150H 150 µm | D Customization | |||
| 200H 200 µm | ||||
| D Customization |
*Example：SSQC2000L10E (SSQC，20µm，Screwed Connector，10 inch，EPDM)
