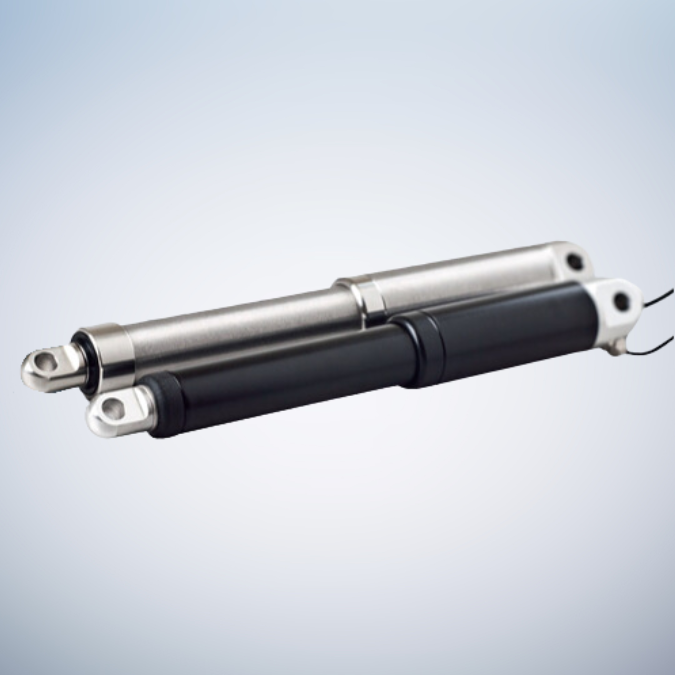

Concens icon series – Actuators with Integrated Controller icon60

With integrated controller our icon60 is ideal where perfect design is required and there is need for high forces

Speed: 5 to 26 mm/s

Voltage: 24 VDC

Load Capacity: 1900 to 10000 N

Stroke Length: 50 to 750 mm

Temperature Operation: – 20 ˚C to + 70 ˚C Storage: – 40 ˚C to + 70 ˚C

Cable specification: Ø4,8 mm cable for icon35 (2 x AWG22 + 6 x AWG28), also available for HE version Ø6,8 mm shielded cable mandatory for MDO (config F) and highly recommended when using Modbus communication Ø6,8 mm cable for icon50/60 (2 x AWG16 + 6 x AWG26), also available for HE version

Bending Radius: 15 x cable diameter

Cable length for icon with 12 VDC motor is limited to 5 m, 24 VDC motor is limited to 9 m. The IP classification covers the actuator including cable and cable gland. Connector (if mounted) or open ends are not part of the certification.
