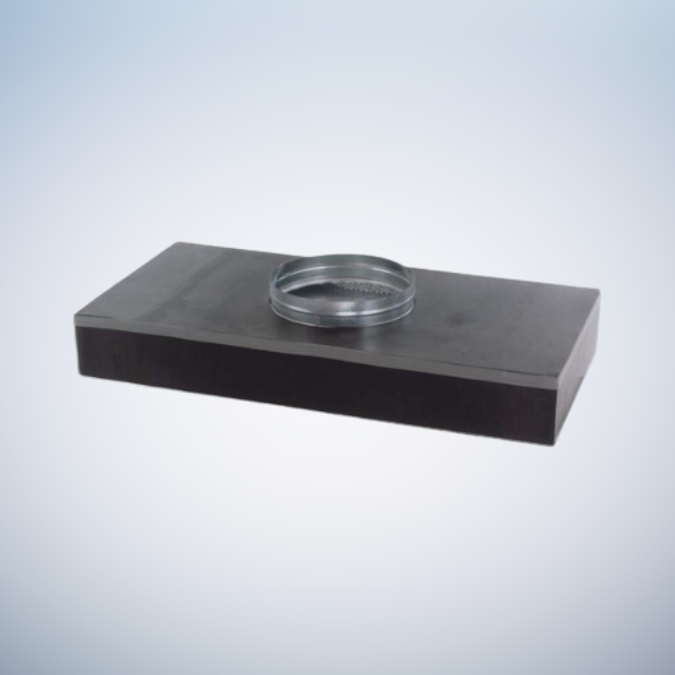

Disposable Filters ULPA
Test Criterion:
D.O.P. 99.999995% 0.3 μm
P.S.L. Testing 99.99995% at 0.3 μm
D.O.P. 99.9995% 0.3 μm
Qualified with:
En 1822 Class U15~U17
IES RP-CC-001.3 TYPE F
| Standard Capacity | ||||||
|---|---|---|---|---|---|---|
| Type | Dimensions(mm) without Inlet Duct |
Capacity | Initial P.D. | Final P.D. | ||
| Length (L) |
Width (W) |
Depth (D) |
||||
| Ceiling Panel | 1220 | 610 | 150 | 20.7 CMM | 17.0mm H2O *Face Velocity:0.5m/sec |
34.0mm H2O |
| Light Duty T-Bar | 1210 | 600 | 150 | 20.2 CMM | ||
| Heavy Duty T-Bar | 1170 | 570 | 150 | 18.5 CMM | ||
| Ceiling Panel | 610 | 610 | 150 | 10.1 CMM | ||
| Light Duty T-Bar | 600 | 600 | 150 | 9.7 CMM | ||
| Heavy Duty T-Bar | 570 | 570 | 150 | 8.7 CMM | ||
Standard diameter of inlet duct are 14″Ø(350mm),12″Ø(300mm) and 10″Ø(250mm).
Disposable Filters HEPA
Test Criterion:
D.O.P. 99.999% 0.3 μm
P.S.L. Testing 99.99% at 0.3 μm
D.O.P. 99.97% 0.3 μm
Qualified with:
En 1822 Class H11/H12/H13/H14
IES RP-CC-001.3 TYPE A/B/C/D
| Standard Cpacity | ||||||
|---|---|---|---|---|---|---|
| Type | Dimensions(mm) without Inlet Duct |
Capacity | Initial P.D. | Final P.D. | ||
| Length (L) |
Width (W) |
Depth (D) |
||||
| Ceiling Panel | 1220 | 610 | 150 | 35.2 CMM | 25.4mm H2O *Face Velocity:0.85m/sec |
50.8mm H2O |
| Light Duty T-Bar | 1210 | 600 | 150 | 34.3 CMM | ||
| Heavy Duty T-Bar | 1170 | 570 | 150 | 31.4 CMM | ||
| Ceiling Panel | 610 | 610 | 150 | 17.2 CMM | ||
| Light Duty T-Bar | 600 | 600 | 150 | 16.6 CMM | ||
| Heavy Duty T-Bar | 570 | 570 | 150 | 14.9 CMM | ||
Standard diameter of inlet duct are 14″Ø(350mm),12″Ø(300mm) and 10″Ø(250mm).
Disposable Filters Semi-HEPA
Test Criterion:
D.O.P.
Testing 95% at 0.3 μm
P.S.L.
Qualified with:
En 1822 Class H10
| Standard Capacity | ||||||
|---|---|---|---|---|---|---|
| Type | Dimensions(mm) without Inlet Duct |
Capacity | Initial P.D. | Final P.D. | ||
| Length (L) |
Width (W) |
Depth (D) |
||||
| Ceiling Panel | 1220 | 610 | 150 | 35.2 CMM | 12.5mm H2O *Face Velocity:0.85m/sec |
25.0mm H2O |
| Light Duty T-Bar | 1210 | 600 | 150 | 34.3 CMM | ||
| Heavy Duty T-Bar | 1170 | 570 | 150 | 31.4 CMM | ||
| Ceiling Panel | 610 | 610 | 150 | 17.2 CMM | ||
| Light Duty T-Bar | 600 | 600 | 150 | 16.6 CMM | ||
| Heavy Duty T-Bar | 570 | 570 | 150 | 14.9 CMM | ||
Standard diameter of inlet duct are 14″Ø(350mm),12″Ø(300mm) and 10″Ø(250mm).
