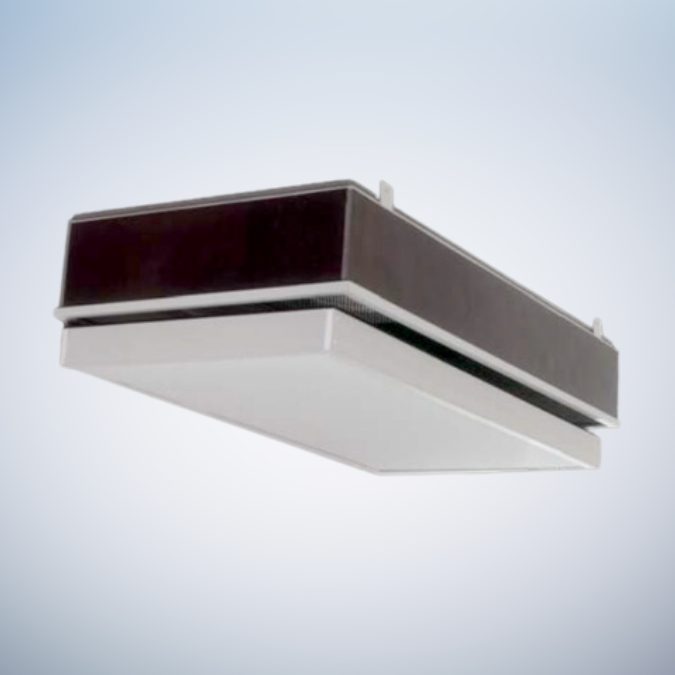

Room Side Replaceable Filters ULPA
Test Criterion:
D.O.P. 99.999995% 0.1 ~ 0.2 μm
P.S.L. Testing 99.99995% at 0.1 ~ 0.2 μm
D.O.P. 99.9995% 0.1 ~ 0.2 μm
Qualified with:
En 1822 Class U15~U17
IES RP-CC-001.3 TYPE F
| Standard Capacity | |||||||
|---|---|---|---|---|---|---|---|
| Dimensions(mm) without Inlet Duct |
Dimensions(mm) without Gasket |
Capacity | Initial P.D. | ||||
| Lengteh (L) |
Width (W) |
Depth (D) |
Length (L) |
Width (W) |
Depth (D) |
||
| 1210 | 600 | 180 | 1170 | 560 | 70 | 20.2 CMM | 17mm H2O |
| 1170 | 570 | 180 | 1130 | 530 | 70 | 18.3 CMM | |
| 905 | 600 | 180 | 865 | 560 | 70 | 14.8 CMM | |
| 870 | 570 | 180 | 830 | 530 | 70 | 13.3 CMM | |
| 600 | 600 | 180 | 560 | 560 | 70 | 9.4 CMM | |
| 570 | 570 | 180 | 530 | 530 | 70 | 8.3 CMM | |
Standard diameter of inlet duct are 14″Ø(350mm),12″Ø(300mm) and 10″Ø(250mm).
| High Capacity | |||||||
|---|---|---|---|---|---|---|---|
| Dimensions(mm) without Inlet Duct |
Dimensions(mm) without Gasket |
Capacity | Initial P.D. | ||||
| Length (L) |
Width (W) |
Depth (D) |
Length (L) |
Width (W) |
Depth (D) |
||
| 1210 | 600 | 180 | 1170 | 560 | 70 | 34.3 CMM | 25.4mm H2O |
| 1170 | 570 | 180 | 1130 | 530 | 70 | 31.2 CMM | |
| 905 | 600 | 180 | 865 | 560 | 70 | 25.1 CMM | |
| 870 | 570 | 180 | 830 | 530 | 70 | 22.7 CMM | |
| 600 | 600 | 180 | 560 | 560 | 70 | 15.9 CMM | |
| 570 | 570 | 180 | 530 | 530 | 70 | 14.2 CMM | |
Standard diameter of inlet duct are 14″Ø(350mm),12″Ø(300mm) and 10″Ø(250mm).
Room Side Replaceable Filters HEPA
Test Criterion:
D.O.P. 99.999% 0.1 ~ 0.2 μm
P.S.L. Testing 99.99% at 0.1 ~ 0.2 μm
D.O.P. 99.97% 0.1 ~ 0.2 μm
Qualified with:
En 1822 Class H11/H12/H13/H14
IES RP-CC-001.3 TYPE A/B/C/D
| Standarc Capcaity | |||||||
|---|---|---|---|---|---|---|---|
| Dimensions(mm) without Inlet Duct |
Dimensions(mm) without Gasket |
Capacity | Initial P.D. | ||||
| Length (L) |
Width (W) |
Depth (D) |
Length (L) |
Width (W) |
Depth (D) |
||
| 1210 | 600 | 180 | 1170 | 560 | 70 | 34.3 CMM | 25.4mm H2O |
| 1170 | 570 | 180 | 1130 | 530 | 70 | 31.2 CMM | |
| 905 | 600 | 180 | 865 | 560 | 70 | 25.1 CMM | |
| 870 | 570 | 180 | 830 | 530 | 70 | 22.7 CMM | |
| 600 | 600 | 180 | 560 | 560 | 70 | 15.9 CMM | |
| 570 | 570 | 180 | 530 | 530 | 70 | 14.2 CMM | |
Standard diameter of inlet duct are 14″Ø(350mm),12″Ø(300mm) and 10″Ø(250mm).
| High Capacity | |||||||
|---|---|---|---|---|---|---|---|
| Dimensions(mm) without Inlet Duct |
Dimensions(mm) without Gasket |
Capacity | Initial P.D. | ||||
| Length (L) |
Width (W) |
Depth (D) |
Length (L) |
Width (W) |
Depth (D) |
||
| 1210 | 600 | 180 | 1170 | 560 | 70 | 50.4 CMM | 25.4mm H2O |
| 1170 | 570 | 180 | 1130 | 530 | 70 | 45.9 CMM | |
| 905 | 600 | 180 | 865 | 560 | 70 | 36.4 CMM | |
| 870 | 570 | 180 | 830 | 530 | 70 | 33.4 CMM | |
| 600 | 600 | 180 | 560 | 560 | 70 | 23.4 CMM | |
| 570 | 570 | 180 | 530 | 530 | 70 | 20.9 CMM | |
Standard diameter of inlet duct are 14″Ø(350mm),12″Ø(300mm) and 10″Ø(250mm).
