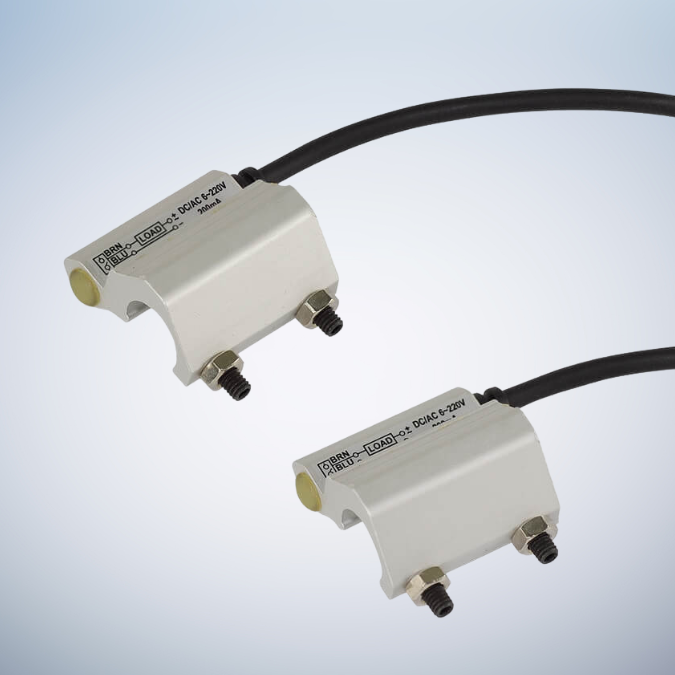

Assembling style: MRT*, Voltage range: 5~240V DC/AC.
| Wiring method | 2 wire (LN0*A), 3 wire (LN0*A-N/P) |
|---|---|
| Contracts | Normal open(LN0*A), Solid state output,N.O(LN0*A-N/P) |
| Switch type | Reed switch(LN0*A), NPN Current sinking(LN0*A-N), PNP Current sinking(LN0*A-P) |
| Current range | 100mA max.(LN0*A), 200mA max.(LN0*A-N/P) |
| Switch range | 10W max.(LN0*A), 6W max.(LN0*A-N/P) (※1) |
| Voltage range | 5~240V DC/AC(LN0*A), 10~30V DC(LN0*A-N/P) |
| Lead wire | 3.3, 2C, PVC(LN0*A), 3.3, 3C, PVC(LN0*A-N/P) |
| Current consumption | OFF:7mA(24V), ON:20mA(24V) max.(LN0*A-N/P) |
| Voltage drop | 3V max.(LN0*A), 0.5V@200mA max.(LN0*A-N/P) |
| Indicator | Red LED(LN0*A, LN0*A-N), Green LED(LN0*A-P) |
| Temperature range | －10℃~＋70℃ (No freezing) |
| Enclosure classification | IEC 60529 IP 67 |
| Protection circuit | 1 (LN0*A), 3,4 (LN0*A-N/P) (※2) |
| Remark | ※1. Warning: Never exceed rating (watt=voltage×amperage). ※2. 1=None / 2=Short-circuit / 3=Power source reverse polarity / 4=Surge suppression. |
