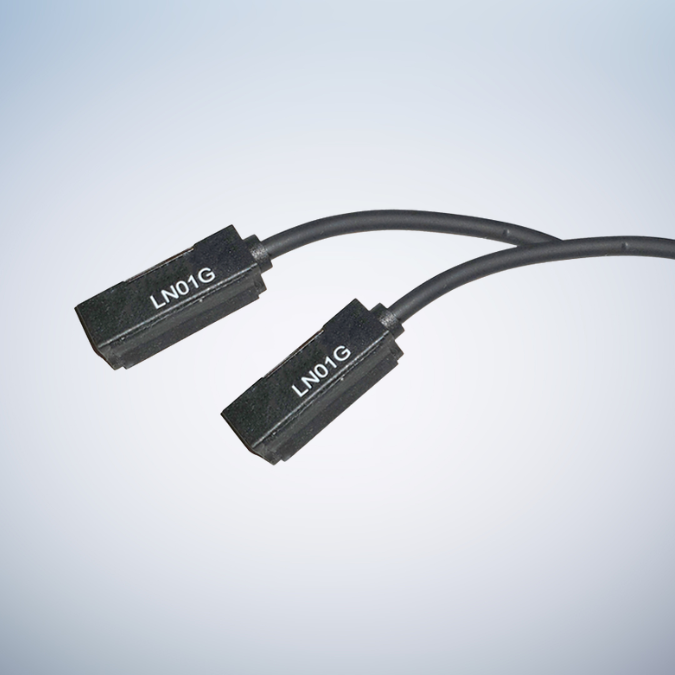

Assembling style: MDO*, Voltage range: 5~240V DC/AC.
| Wiring method | 2-Wire type(LN01G), 3-Wire type(LN01G-N/P) |
|---|---|
| Contracts | Normal open(LN01G), Solid state output,N.O(LN01G-N/P) |
| Switch type | Reed switch (LN01G), NPN Current sinking (LN01G-N), PNP Current sinking(LN01G-P) |
| Current range | 100mA max.(LN01G), 200mA max.(LN01G-N/P) |
| Switch range | 10W max.(LN01G), 6W max.(LN01G-N/P) (※1) |
| Voltage range | 5~240V DC/AC(LN01*), 5~30V DC(LN01*-N/P) |
| Current consumption | OFF:7mA(24V), ON:20mA(24V) max. (LN01G-N/P) |
| Voltage drop | 3V max.(LN01G), 0.5V@200mA max.(LN01G-N/P) |
| Leakage current | 3.3, 2C, PVC(LN01G) ; 3.3, 3C, PVC(LN01G-N/P) |
| Indicator | Red LED(LN01*, LN01G-N), reen LED(LN01G-P) |
| Temperature range | －10℃~＋70℃ (No freezing) |
| Enclosure classification | IEC 60529 IP67 |
| Protection circuit | 1(LN01G), 3,4 (LN01G-N/P) (※2) |
| Remark | ※1. Warning: Never exceed rating (watt=voltage×amperage). ※2. 1=None / 2=Short-circuit / 3=Power source reverse polarity / 4=Surge suppression. |
