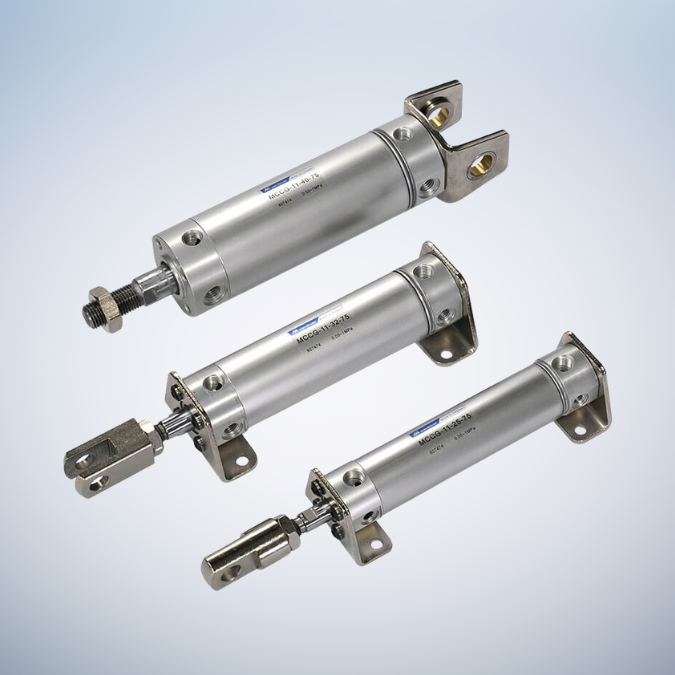

Tube I.D.: φ 20, 25, 32, 40, 50, 63, 80, 100 (mm). Port size Rc1/8, Rc1/4, Operating pressure : 0.05~1 MPa, Proof pressure : 1.5 MPa.

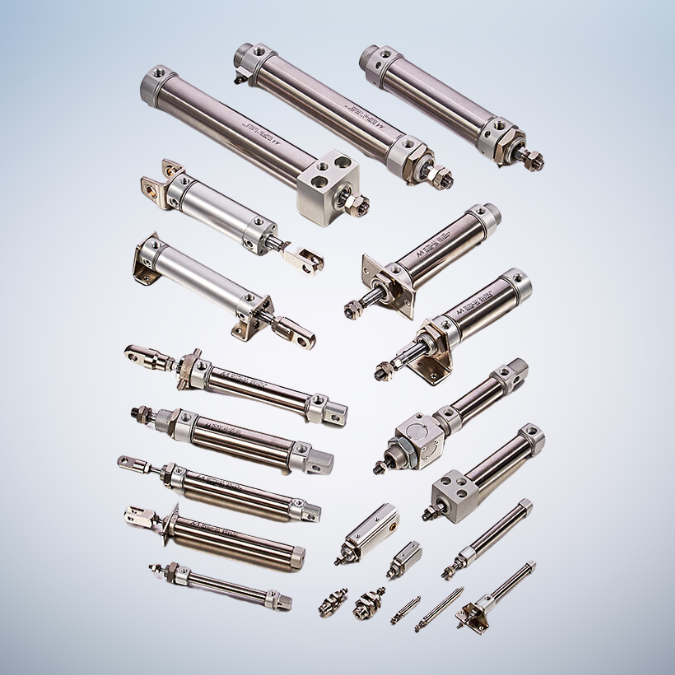

- Many mounting options available.
- Interchangeable with other manufacturers.
| Acting type | Double acting |
|---|---|
| Tube I.D. (mm) | 20, 25, 32, 40, 50, 63, 80, 100 |
| Port size | Rc1/8, Rc1/4, Rc3/8, Rc1/2 |
| Medium | Air |
| Max operating pressure | 1 MPa |
| Min operating pressure | 0.05 MPa |
| Proof pressure | 1.5 MPa |
| Ambient temperature | －5~＋60℃ (No freezing) |
| Lubrication | Not required |
| Available speed range | 50~500 mm/sec |
| Max. allowable kinetic energy | Cushion pad 0.07~2.48 J Cushion air 0.09~4.18 J |
| Sensor switch | RCM |
| Sensor switch holder | BMG20~BMG100 |
