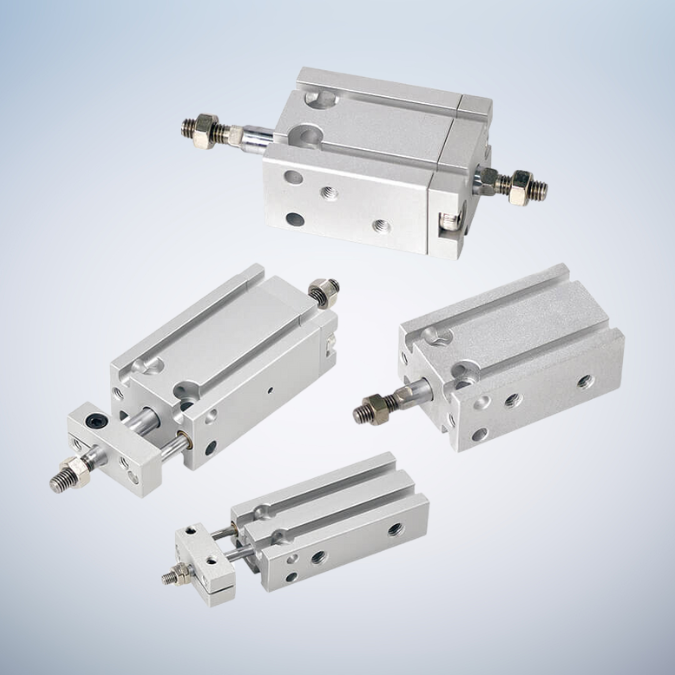

Tube I.D. φ 6, 10, 16, 20, 25, 32 (mm). Compact and space saving.
| Acting type | Double acting |
|---|---|
| Tube I.D. (mm) | 6, 10, 16, 20, 25, 32 |
| Port size | M5×0.8, Rc1/8 |
| Medium | Air |
| Max. operating pressure | 0.7 MPa |
| Min. operating pressure | φ6: 0.12 / φ10,16: 0.06 φ20,25,32: 0.05 MPa |
| Proof pressure | 1 MPa |
| Ambient temperature | －5℃~＋60℃ (No freezing) |
| Available speed range | 50~500 mm/sec |
| Cushion | With rubber cushion pad |
| Sensor switch | RCE, RCE1, RDEP |
| Lubrication | Not required |
