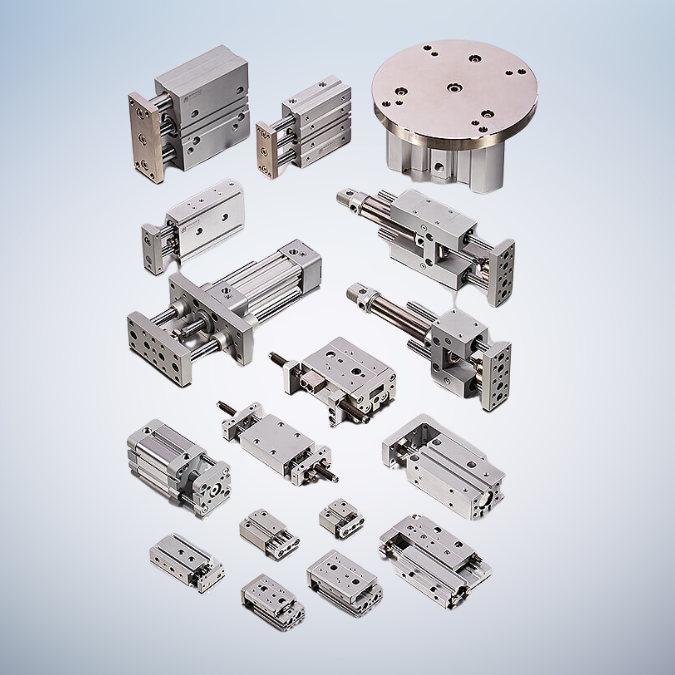

Tube I.D. φ20, 32, 40, 50, 63, 80 (mm). Strong cylinder suitable for heavy load, for stopping work carriers of various sizes at a fixed position, and for stacking many work carriers, etc.

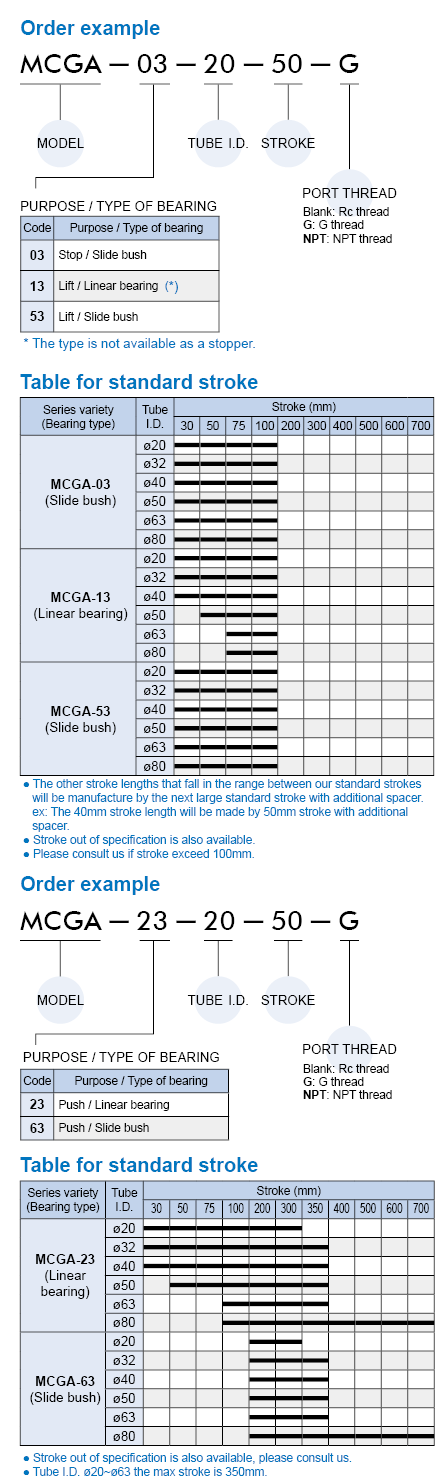

- MCGA-03 / 13 / 53 Stop / Lift type
Strong cylinder capable of high loads, used extensively for stopping work carriers in both the vertical and horizontal position.
Large diameter guide rods enable cylinder to take high off-set loads.
Can be used as 90 degree pusher on large conveyor systems.
Magnetic as standard.
- MCGA-23 / 63 Push type
Long stroke type of the anti-turn accuracy, improved by integrating the guides and cylinder.Linear bush bearing type available for high accuracy in the high speed work. On the link bar at the top, many thread holes for mounting attachments are provided for easy mounting.Lift type of long stroke is available by replacing the link bar with table plate. Magnetic as standard.
| Acting type | Double acting |
|---|---|
| Tube I.D. (mm) | 20, 32, 40, 50, 63, 80 |
| Port size | Rc1/8, Rc1/4, Rc3/8 |
| Medium | Air |
| Operating pressure range | 0.1~1 MPa |
| Proof pressure | 1.5 MPa |
| Ambient temperature | －5~＋60℃ (No freezing) |
| Lubrication | Not required |
| Available speed range | 50~500mm/sec |
| Cushion | With rubber cushion pad |
| Sensor switch | RCB |
