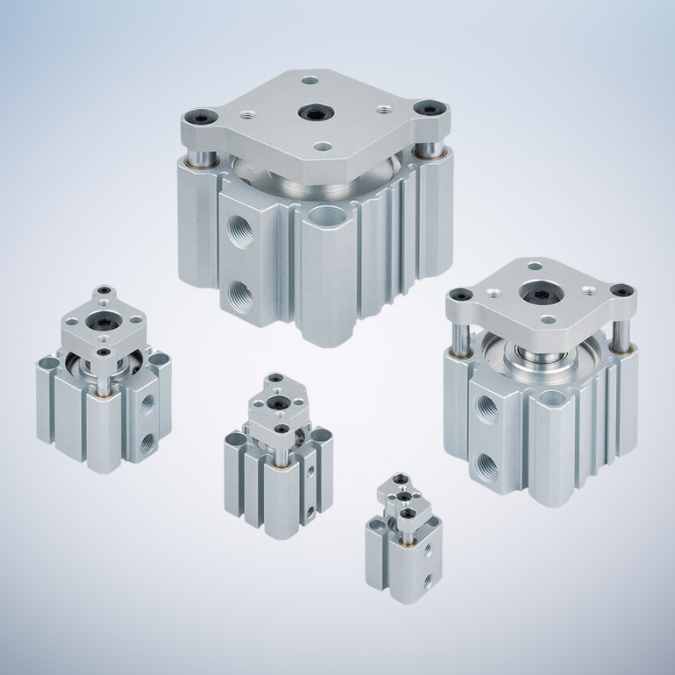

Tube I.D. φ 12,16,20,25,32,40,50,63,80,100 (mm). Higher loading capacity compared to unguided standard compact cylinders. Up to 6 flush fitting reed switches can be mounted.
- Higher loading capacity compared to unguided standard compact cylinders.
- Up to 6 flush fitting reed switches can be mounted.
| Acting type | Double acting |
|---|---|
| Tube I.D. (mm) | 12, 16, 20, 25, 32, 40, 50, 63, 80, 100 |
| Port size | M5×0.8, Rc1/8*1, Rc1/4, Rc3/8 |
| Medium | Air |
| Operating perssure range | 0.12~1, 0.1~1 MPa |
| Proof pressure | 1.5 MPa |
| Ambient temperature | －5℃~＋60℃ (No freezing) |
| Cushion | With rubber cusion pad |
| Available speed range | 50~500 mm/sec |
| Lubricator | Not required |
| Sensor switch | RDC, RQC |
| Remark | *1. ø32 without magnet with storke = 5mm, port size is M5×0.8. |
