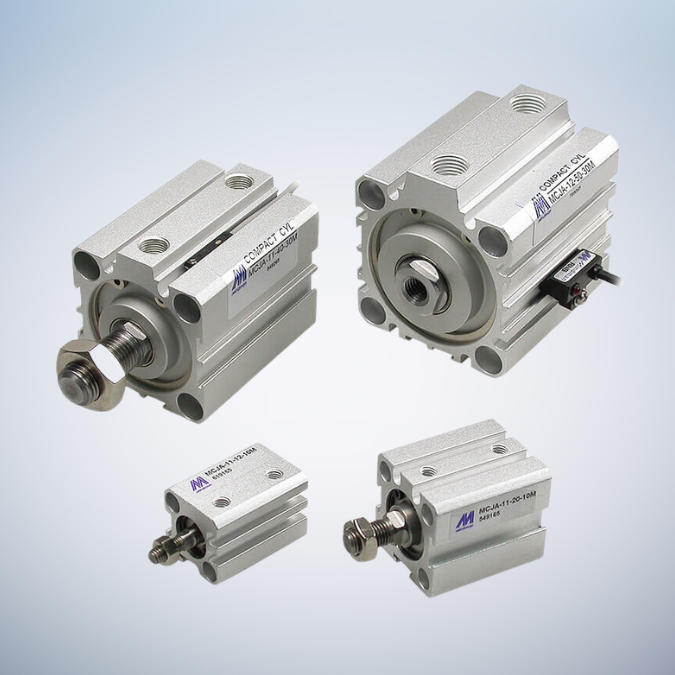

Tube I.D. φ 12, 16, 20, 25, 32, 40, 50, 63, 80, 100 (mm), Ultra Compact, light weight and space saving cylinder. Single and double acting available.
- Ultra Compact, light weight and space saving cylinder.
- Wide range of bore sizes and strokes (12mm~100mm).
- Single and double acting available.
- Ideal for use in machinery where space is limited and incorporating sensor groove which enables flush fitting of sensors.
| Acting type | Double acting / Single acting |
|---|---|
| Tube I.D. (mm) | 12, 16, 20, 25, 32, 40, 50, 63, 80, 100 |
| Port size | M5×0.8, Rc1/8, Rc1/4, Rc3/8 |
| Medium | Air |
| Operating pressure range | Double acting:0.02~1 MPa, Single acting:0.1~1 MPa |
| Proof pressure | 1.5 MPa |
| Ambient temperature | －5~＋60℃ (No freezing) |
| Available speed range | 50~500 mm/sec |
| Sensor switch | RCB, RCE, RCE1, RDEP |
