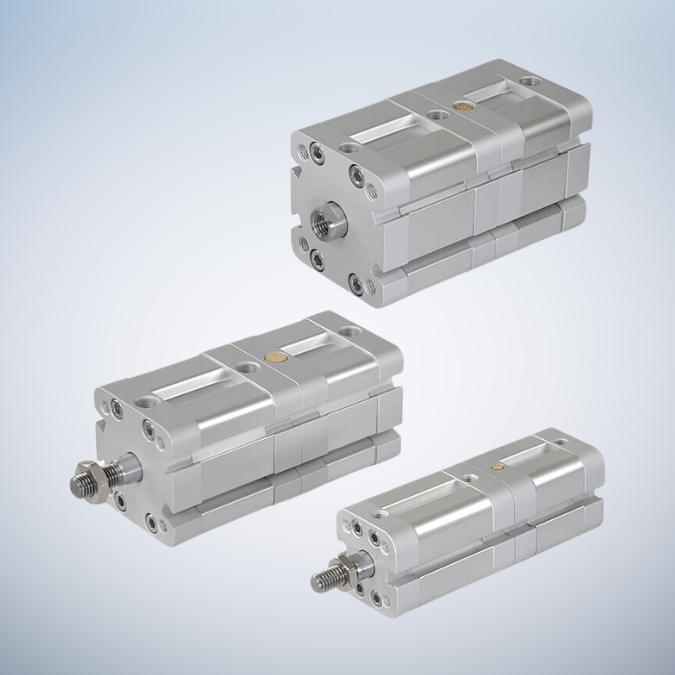

Tube I.D. φ20, 25, 32, 40, 50, 63, 80, 100 (mm). ISO 21287 standard. Wide range of bore sizes and strokes. Magnetic as standard.
- ISO 21287 standard.
- Wide range of bore sizes and strokes.
- Ultra compact, light weight and space saving.
- Sensor slots on RCI sides for flush mounting of proximity sensors.
- Magnetic as standard.
| Acting type | Double acting |
|---|---|
| Tube I.D. (mm) | 20,25,32,40,50,63,80,100 |
| Port size | φ20, φ25: M5×0.8, φ32~φ100: G1/8 |
| Medium | Air |
| Operating pressure range | 0.05~1 MPa |
| Proof pressure | 1.5 MPa |
| Ambient temperature | －5℃~＋60℃ (No freezing) |
| Available speed range | 50~500 mm/sec |
| Cushion | Rubber bumpper |
| Stroke length tolerance | ＋0~＋1.0 mm (※) |
| Sensor switch | RCI |
| Remark | ※ Stroke length tolerance does not include the amount of bumper change. |
