Tube I.D. φ 12, 16, 20, 25, 32 ,40, 50, 63, 80, 100 (mm), Two-stage stroke: Two compact cylinders with same I.D. but different strokes length are connected to achieve two-stage stroke. Ultra Compact, light weight and space saving cylinder.

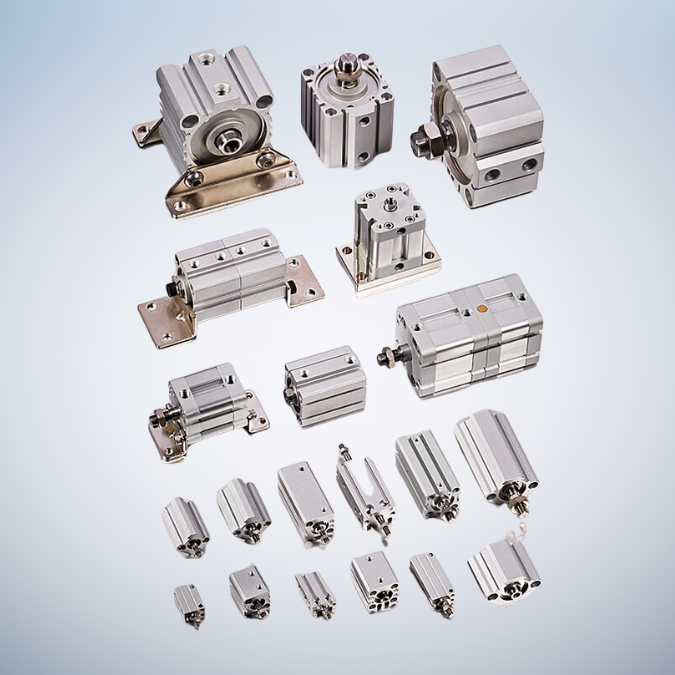

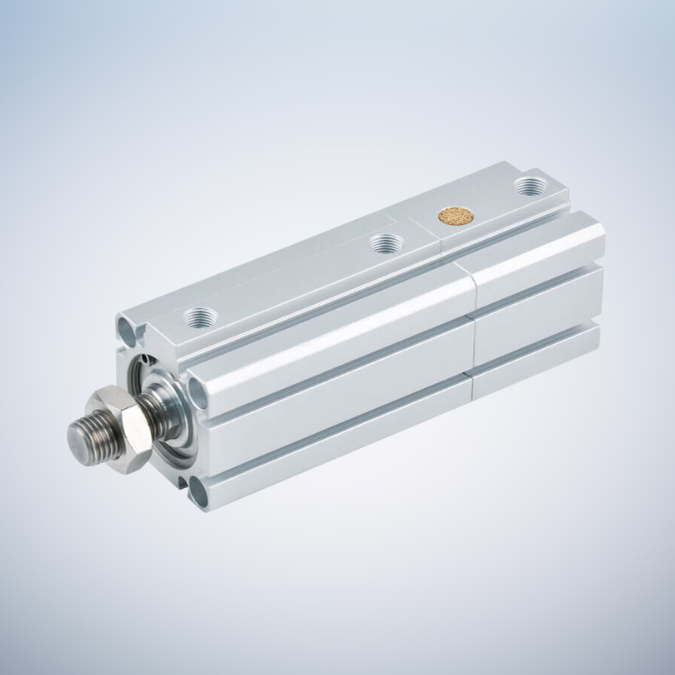

- Two-stage stroke: Two compact cylinders with same I.D. but different strokes length are connected to achieve two-stage stroke.
- Ultra Compact, light weight and space saving cylinder.
- Wide range of bore sizes and strokes (12mm~100mm).Wide range of bore sizes and strokes (12mm~100mm).
- Single and double acting available.
- Ideal for use in machinery where space is limited and incorporating sensor groove which enables flush fitting of sensors.
- Sensor can be mounted on any one of three faces on 12 and 16 bore and on four faces on 20~100 bore.

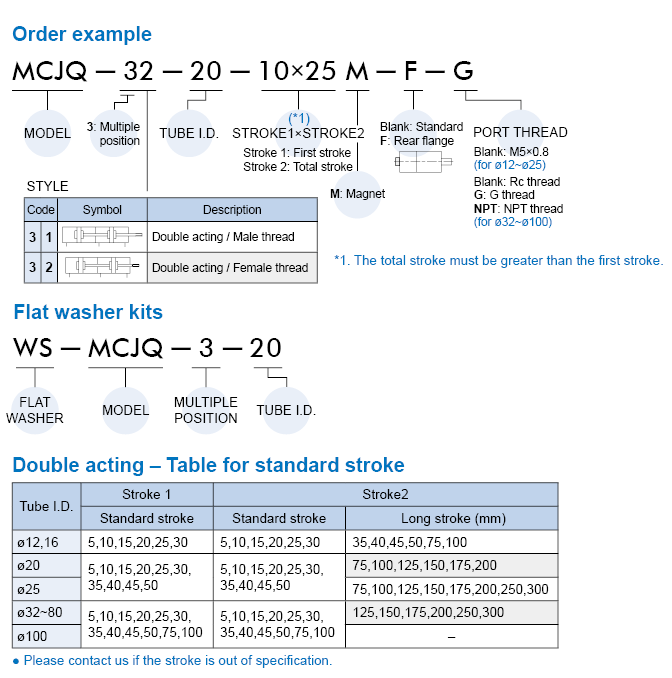

| Acting type | Double acting |
|---|---|
| Tube I.D. (mm) | 12, 16, 20, 25, 32, 40, 50, 63, 80, 100 |
| Port size | M5×0.8, Rc1/8, Rc1/4, Rc3/8 |
| Medium | Air |
| Operating pressure range | 0.07~1 MPa, 0.05~1 MPa |
| Proof pressure | 1.5 MPa |
| Ambient temperature | －5~＋60℃ (No freezing) |
| Available speed range | 50~500 mm/sec |
| Sensor switch | RCE, RCE1, RDEP |
