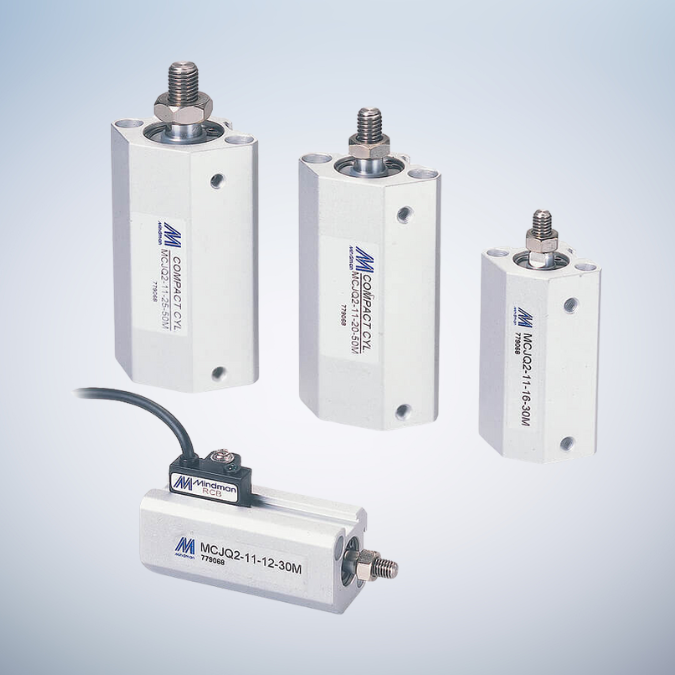

Tube I.D. φ 12, 16, 20, 25 (mm), Ultra Compact, light weight and space saving cylinder.
- Ultra Compact, light weight and space saving cylinder.
- Single and double acting available.
- Ideal for use in machinery where space is limited and incorporating sensor groove which enables flush fitting of sensors.
- Magnetic as standard.
| Acting type | Double acting |
|---|---|
| Tube I.D. (mm) | 12, 16, 20, 25 |
| Port size | M5×0.8 |
| Operating pressure range | 12,16: 0.07~1 MPa, 20,25: 0.05~1 MPa |
| Proof pressure | 1.5 MPa |
| Ambient temperature | -5℃~+60℃ (No freezing) |
| Available speed range | 50~500 mm/sec |
| Sensor switch holder | RCB |
