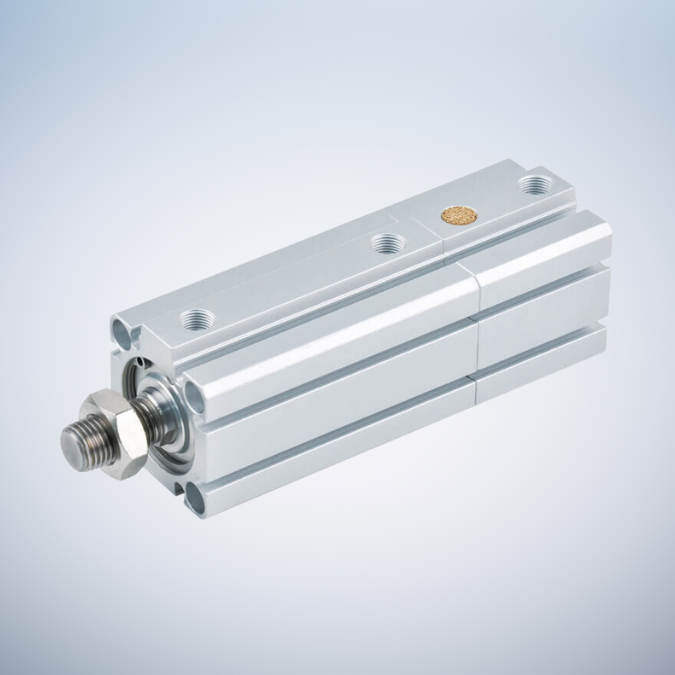

Tube I.D. φ 12, 16, 20, 25, 32 ,40, 50, 63, 80, 100 (mm), Two-stage stroke: Two compact cylinders with same I.D. but different strokes length are connected to achieve two-stage stroke.
- Two-stage stroke: Two compact cylinders with same I.D. but different strokes length are connected to achieve two-stage stroke.
| Acting type | Double acting |
|---|---|
| Tube I.D. (mm) | 12, 16, 20, 25, 32, 40, 50, 63, 80, 100 |
| Port size | M5×0.8, Rc1/8, Rc1/4, Rc3/8 |
| Medium | Air |
| Operating pressure range | 0.07~1 MPa, 0.05~1 MPa |
| Proof pressure | 1.5 MPa |
| Ambient temperature | －5~＋60℃ (No freezing) |
| Available speed range | 50~500 mm/sec |
| Sensor switch | RDC, RQC |
