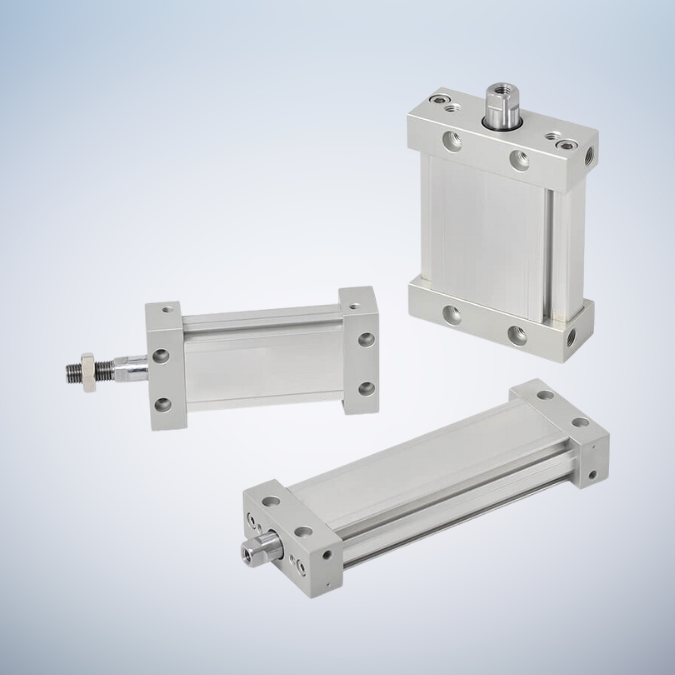

Tube I.D. φ25, 32, 40, 50, 63 (mm), Plate type design for ultra compact, Oval piston design for non-rotation and space saving.
- Plate type design for ultra compact, Oval piston design for non-rotation and space saving.
- Sensor slots on sides for flush mounting of proximity sensors.
- Magnetic as standard.
| Acting type | Double acting |
|---|---|
| Tube I.D. (mm) | 25, 32, 40, 50, 63 |
| Port size | 25: M5×0.8 32, 40: Rc1/8 50, 63: Rc1/4 |
| Medium | Air |
| Operating pressure range | 0.05~0.7 MPa |
| Proof pressure | 1.0 MPa |
| Ambient temperature | －5℃~＋60℃ (No freezing) |
| Available speed range | 50~500 mm/sec |
| Lubrication | Without lubrication |
| Cushion | Rubber bumper |
| Stroke length tolerance | ＋0 ~ ＋1.5mm
(Stroke length tolerance does not include the amount of bumper change.) |
| Sensor switch | RDFE, RDGV |
