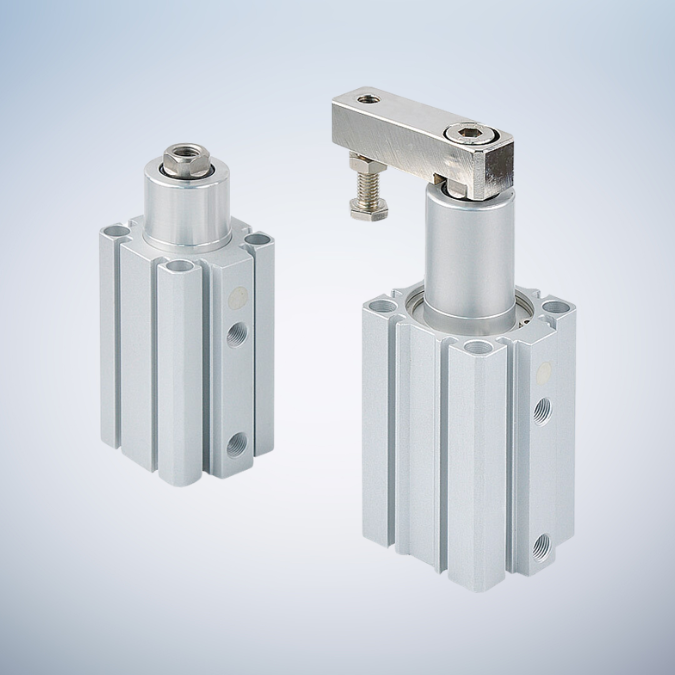

Tube I.D. φ12, 16, 20, 25, 32, 40, 50, 63 (mm). Space saving. Easy to adjust sensor position. Selectable clamping plate.
- Built-in counterbore design for mounting without additional bracket.
- Easy to adjust sensor position.
- Selectable clamping lever.
- Magnetic as standard.
| Acting type | Double acting |
|---|---|
| Tube I.D. (mm) | 12, 16, 20, 25, 32, 40, 50, 63 |
| Port size Rc(PT) | M5×0.8, Rc1/8 |
| Rotary angle | 90°±10° |
| Rotary direction | Left (L)、Right (R) |
| Rotary stroke | 7.5mm, 9.5 mm, 15 mm |
| Clamp stroke | 10, 20, 30, 50 mm (50 only for ø50, ø63) |
| Medium | Air |
| Operating pressure range | 0.1~1 MPa |
| Temperature range | －5℃~＋60℃ (No freezing) |
| Available speed range (※1) | 50~200 mm/s |
| Non-rotating accuracy (※2) |
±2°, ±1.3°, ±1.2° |
| Lubrication | Not required |
| Sensor switch | RDE, RCE, RCE1, RNE, RPE, RDEP |
| Remark | *1. Keep the operating speed between 50~200mm/s with a speed conteoller. Please refer to moment of inertia. Adjust the speed gradually from state to prevent inner parts being damaged. *2. Arm during clamping (Clamp part). |
