Tube I.D. φ12, 16, 20, 25, 32, 40, 50, 63 (mm). Ultra Compact, light weight and space saving cylinder. The sensor can freely mounted the four sides.
- Ultra compact, light weight and space saving cylinder.
- Ideal for use in machinery where space is limited and incorporating sensor groove which enables flush fitting of sensors.
- The sensor can freely mounted the four sides.
- Magnetic as standard.

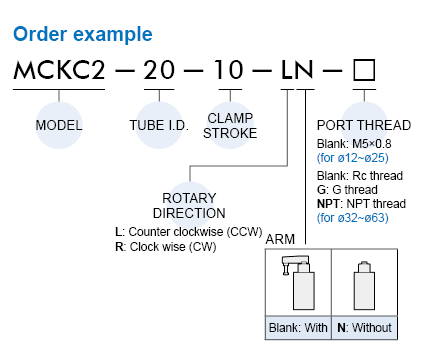

| Acting type | Double acting |
|---|---|
| Tube I.D. (mm) | 12, 16, 20, 25, 32, 40, 50, 63 mm |
| Port size | M5×0.8, Rc1/8, Rc1/4 |
| Rotary angle (Extension end) | 90°±10° |
| Rotary direction | CCW (L), CW (R) |
| Rotary stroke (mm) | 7.5, 9.5, 15, 19 mm |
| Clamp stroke (mm) | 10, 20, 30, 50 (50 only for ø50, ø63) |
| Medium | Air |
| Operating pressure range | 0.1~1 MPa |
| Ambient temperature | –5~+60°C (No freezing) |
| Available speed range (※1) | 50~200 mm/sec |
| Non-rotating accuracy (※2) | ±2°, ±1.3°, ±1.2° |
| Lubrication | Not required |
| Sensor switch | RDC, RQC |
| Remark | ※1. Keep the operating speed between 50~200mm/s with a speed conteoller. Please refer to moment of inertia. Adjust the speed gradually from state to prevent inner parts being damaged. ※2. Arm during clamping (Clamp part). |
