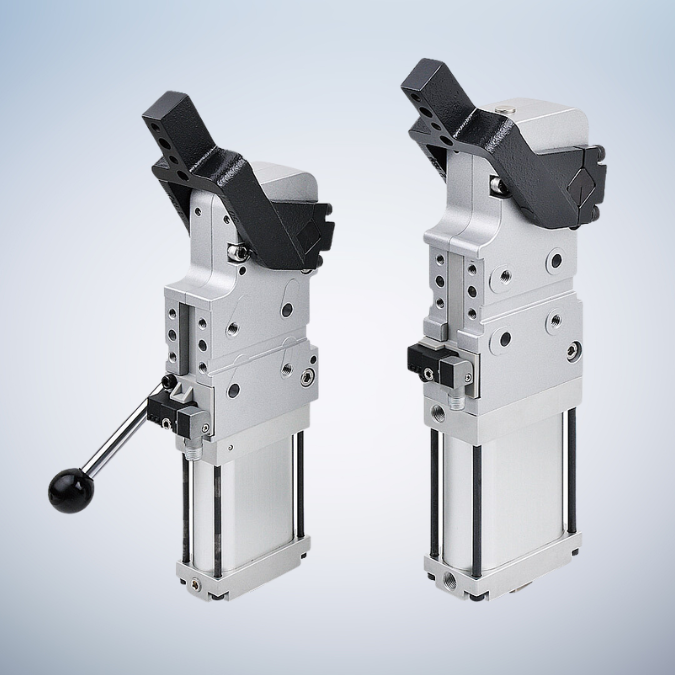

Tube I.D: 50, 63 (mm), Oval piston design for space saving, Adjustable clamping arm angle (15°～135°), Selectable clamping arm with 12 variations, Selectable welding slag and magnetic field proof sensor, Cylinder maintains clamping position with self-locking mechanism even the air source is off.
- Oval piston design for space saving.
- Clamping arm angle is adjustable via adjusting bolt with ease.
- 12 types of clamping arm for various usage.
- 15° minimum release angle for lowering clamping time.
- Welding slag and magnetic field proof sensor is available.
- Cylinder remains clamping position with self-locking mechanism even the air source is off.
| Acting type | Double acting |
|---|---|
| Tube I.D. (mm) | 50, 63 |
| Port size | 50: Rc1/8 63: Rc1/4 |
| Release angle range | 15°,30°,45°,60°,75°,90°,105°,120°,135° |
| Medium | Filter air |
| Operating perssure range | 0.3~0.8 MPa |
| Proof pressure | 1.2 MPa |
| Ambient temperature | －10℃~＋60℃ (No freezing) |
| Cushion | Cushion pad |
| Min. operating time | At least 1.0 second to clamp and uncalmp |
| Sensor switch | RNKD |
| Weight | Cylinder: 2800 g, 3400 g Arm: 15 type: 1050 g, 15 type: 1250 g 45 type: 1150 g, 45 type: 1400 g |
