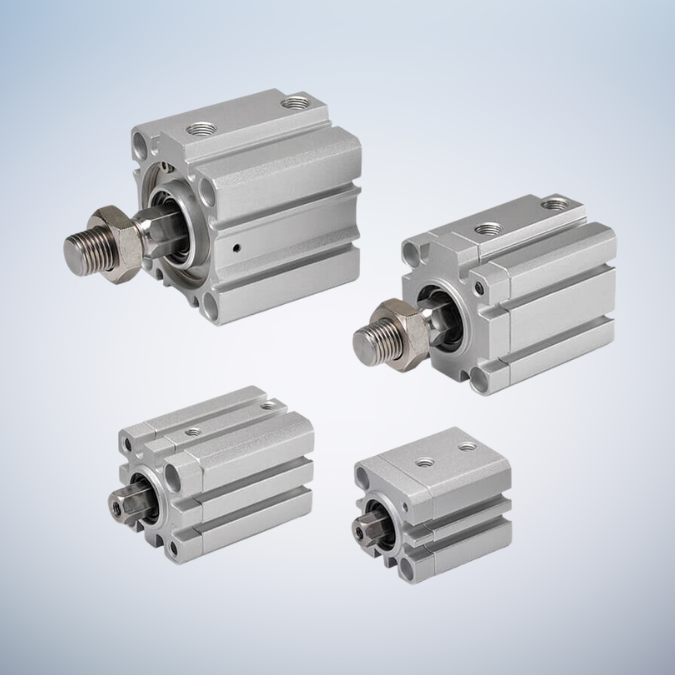

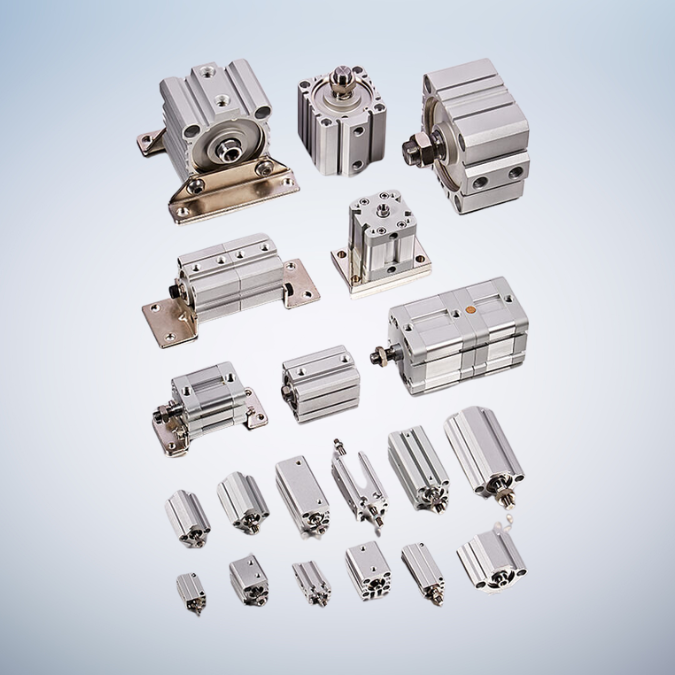

Tube I.D. φ 12, 16, 20, 25, 32 ,40 (mm), Hexagonal rods for non-rotating rod feature. Anodised aluminum tubes provide better corrosion and abrasion resistance. Stainless Steel rods for higher corrosion resistance.
- The profile designs are based on MCJQ.
- Hexagonal rods for non-rotating feature.
- Anodised aluminum tubes provide better corrosion and abrasion resistance.
- Stainless Steel rods for higher corrosion resistance.
| Acting type | Double acting |
|---|---|
| Tube I.D. (mm) | 12, 16, 20, 25, 32, 40 |
| Port size | M5×0.8, Rc1/8 |
| Medium | Air |
| Operating pressure range | ø12、ø16：0.1 ~ 1 MPa ø20、ø25：0.8 ~ 1 MPa ø32、ø40：0.6 ~ 1 MPa |
| Proof pressure | 1.5 MPa |
| Ambient temperature | －5℃~＋60℃ (No freezing) |
| Available speed range | 50~500 mm/sec |
| Rod non-rotating accuracy | ±1°, ±0.7°, ±0.5° |
| Allowable rotational torque | 0.4 ~ 4.5 kgf-cm |
| Sensor switch | RCE, RCE1, RDEP |
| Remark | The cylinder is allowed little leakage. Before the cylinder is sale, it has passed the standard of leakage test. |
