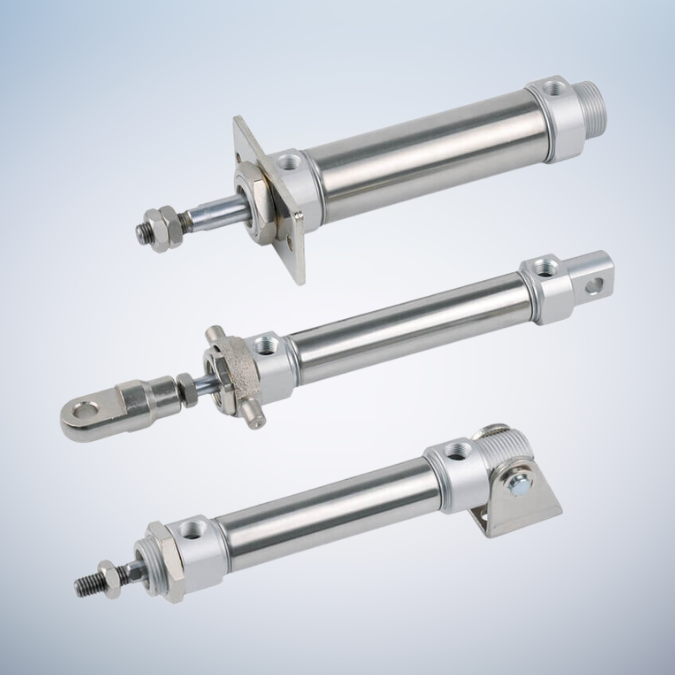

Tube I.D. φ20, 25, 32, 40 (mm). Designs of oil-filled alloy. special housing and bushing provide the needed self-lubrication of piston rod. Stainless cylinder tubes resist corrosion and abrasion.
- Non-lubrication
Special housing and bushing enables self lubrication of piston rod. - High quality-long service life
Hard anodised stainless steel cylinder tubes offer a high resistance to corrosion and low internal friction. - Cylinder mountings

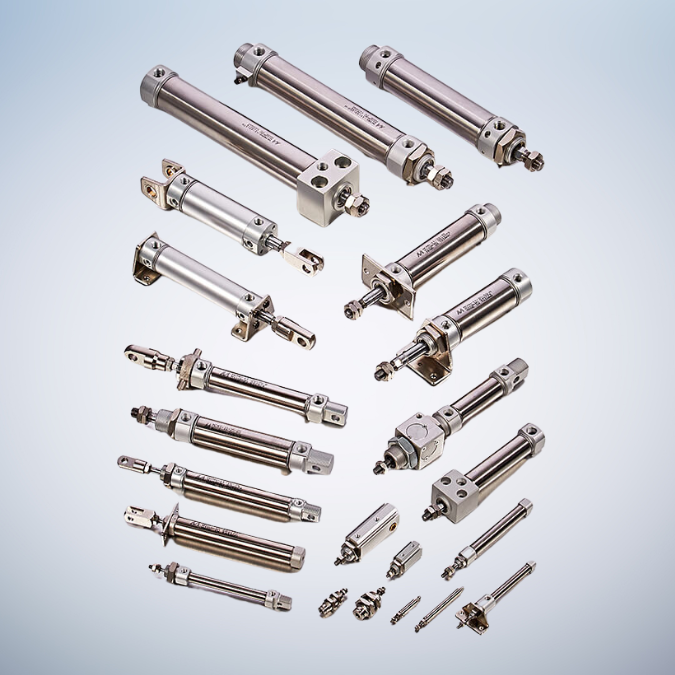

Cylinder mountings, available with a comprehensive range of accessories for rigid or flexible mounting. - Standard with magnet.
| Tube I.D. (mm) | 20, 25, 32, 40 |
|---|---|
| Port size | Rc1/8, Rc1/4 |
| Medium | Air |
| Max. operating pressure | 1 MPa |
| Min. operating pressure | (Double acting) 0.05 MPa, (Single acting) Extended: 0.23, Returned: 0.18 MPa |
| Proof pressure | 1.5 MPa |
| Ambient temperature | －5~＋60℃ (No freezing) |
| Lubricator | Not required |
| Available speed range | 50~750 mm/sec |
| Max. allowable kinetic energy | Cushion pad 0.27~1.2J, Adjustable cushion 0.54~2.35J |
| Sensor switch | RCM |
| Sensor switch band | BM20~BM40 |
