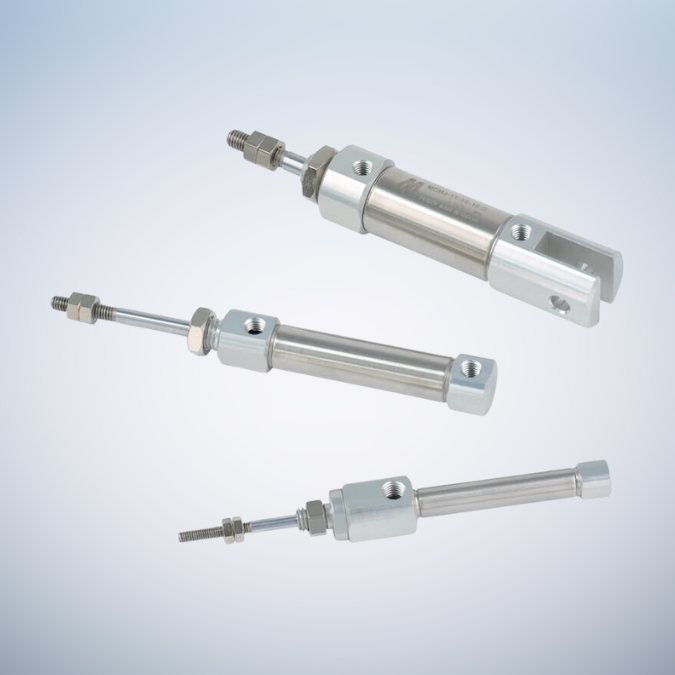

Tube I.D. φ 6, 10, 16 (mm). Stainless steel cylinder tubes offer a high resistance to corrosion and low internal friction. Available with a comprehensive range of accessories for rigid or flexible mounting.
- High quality long service life

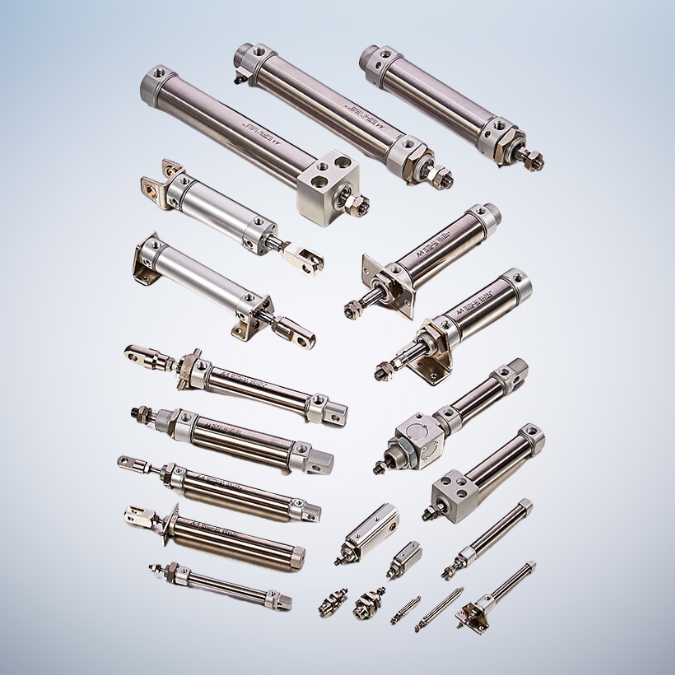

Stainless steel cylinder tubes offer a high resistance to corrosion and low internal friction. - Cylinder mountings
Available with a comprehensive range of accessories for rigid or flexible mounting.
| Tube I.D. (mm) | 6, 10, 16 |
|---|---|
| Port size | M5×0.8 |
| Medium | Air |
| Max. operating pressure | 0.7 MPa |
| Min. operating pressure | 0.06~0.25 MPa |
| Proof pressure | 1 MPa |
| Ambient temperature | －5~＋60℃ (No freezing) |
| Lubricator | Not required |
| Available speed range | 50~500 mm/sec |
| Max. allowable kinetic energy | 0.012~0.09J |
| Sensor switch | RCM |
| Sensor switch band | BM6~16 |
