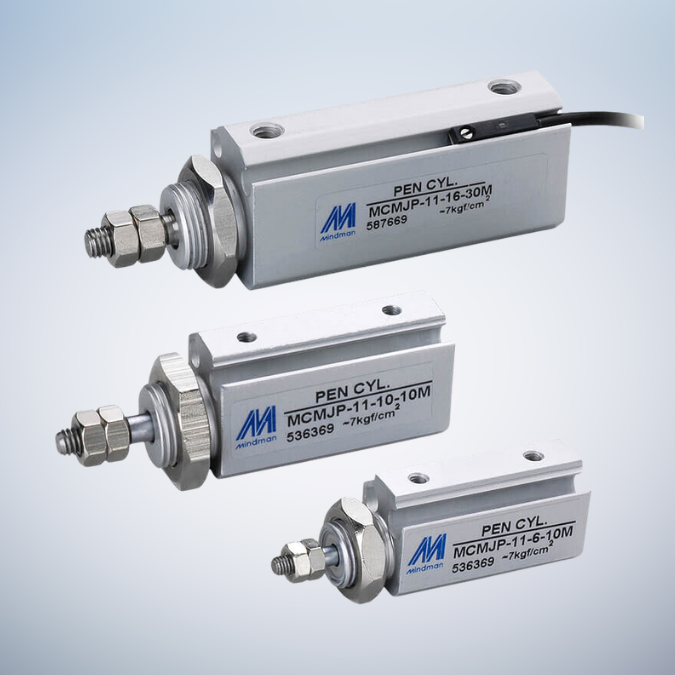

Tube I.D. φ6, 10, 16 mm. Space saving, compact design enables simple mounting. Flush fitting sensor switch.
- Space saving, compact design enables simple mounting.
- Flush fitting sensor switch.
| Acting type | Double acting |
|---|---|
| Tube I.D. (mm) | 6, 10, 16 |
| Port size | M3×0.5, M5×0.8 |
| Medium | Air |
| Max. operating pressure | 0.7 MPa |
| Min. operating pressure | 0.06~0.12 MPa |
| Proof pressure | 1 MPa |
| Ambient temperature | －5~＋60℃ (No freezing) |
| Lubricator | Not required |
| Available speed range | 50~500 mm/sec |
| Max. allowable kinetic energy | 0.012~0.05J |
| Sensor switch | RDFE (V), RDGV |
