Tube I.D. φ 6, 10, 15 (mm). The installation space can be significantly reduced because this cylinder can be recessed directly into a machine body or installed on a panel. Thus, the machines can be made more compact.

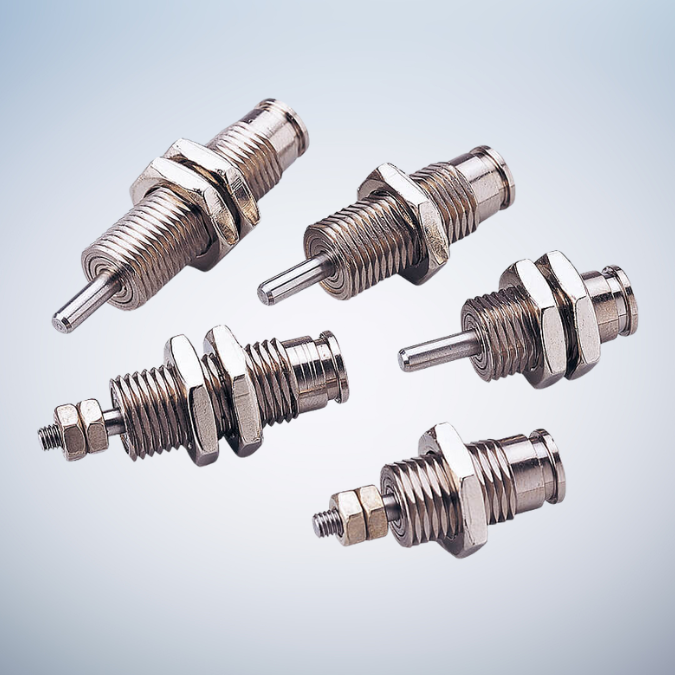

- A short stroke miniature cylinder with a shorter overall length.
The installation space can be significantly reduced because this cylinder can be recessed directly into a machine body or installed on a panel. Thus, the machines can be made more compact.
| Acting type | Single acting |
|---|---|
| Tube I.D. (mm) | 6, 10, 15 |
| Medium | Air |
| Max. operating pressure | 0.7 MPa |
| Min. operating pressure | φ 6：0.2 MPa, φ 10, 15：0.15 MPa |
| Proof pressure | 1 MPa |
| Ambient temperature | －5~＋60℃ (No freezing) |
| Lubricator | Not required |
| Available speed range | 50~500 mm/sec |
| Max. allowable kinetic energy | 0.003~0.019J |
