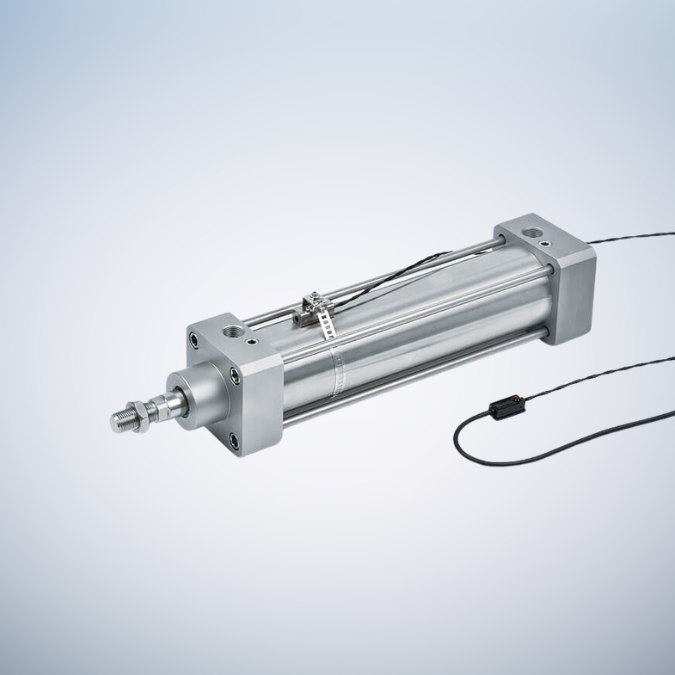

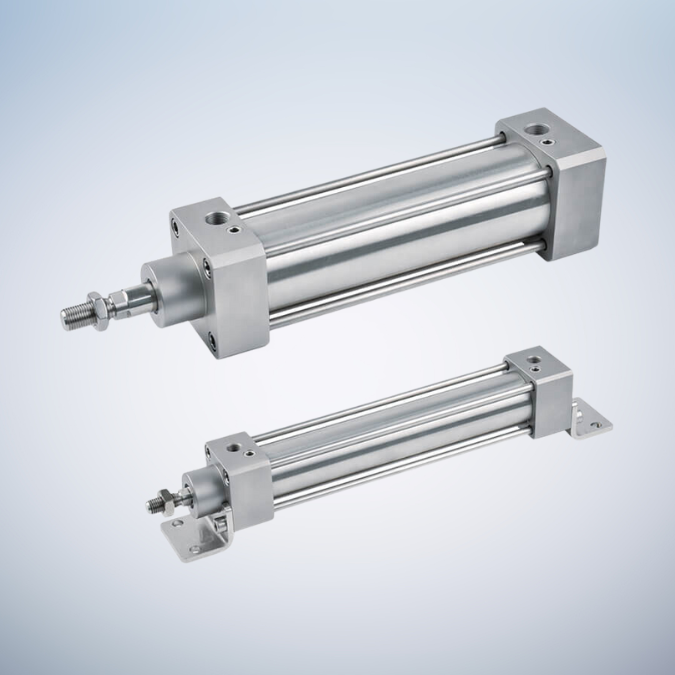

Tube I.D. φ 32, 40, 50, 63, 80, 100 (mm). AISI 316 stainless steel. Fits the chemical, food and pharmaceutical environment. Conformance to ISO 15552 specification. Available with comprehensive internationally recognised range of fixed and flexible mountings.
- High strength steel & chemical resistance
Made of AISI 316 stainless steel. - ISO 15552 standard specification
Conform to ISO 15552 specification, enabling worldwide interchangeability. - Cylinder mountings
Available with comprehensive internationally recognised range of fixed and flexible mountings. - Magnetic as standard
| Tube I.D. (mm) | 32, 40, 50, 63, 80, 100 |
|---|---|
| Medium | Air |
| Operating pressure range | 0.1~1 MPa |
| Proof pressure | 1.5 MPa |
| Ambient temperature | –10~+80°C (No freezing) |
| Available speed range | 50~1000 mm/sec |
| Sensor switch | RCV |
| Sensor switch band | BV125 |
