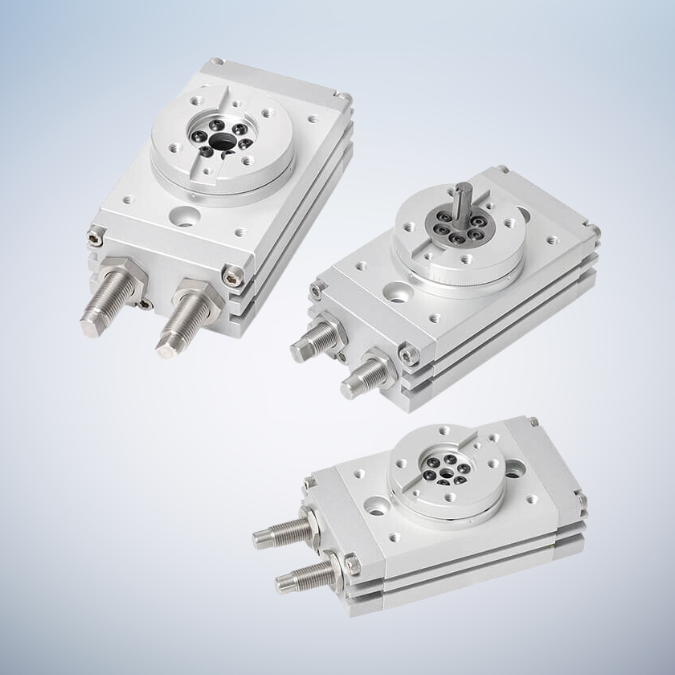

Bore size: φ 6, 20, 25, 32 (mm). Easy to adjust sensor position. Adjustable rotation range (0°~190°). Dual piston design with rack and pinion structure. Three mounting direction.
- Dual piston design with rack and pinion structure.
- Adjustable rotation range (0° ~ 190°).
- Three mounting direction.
- Easy to adjust sensor position.
- Magnetic as standard.
| Acting type | Double acting |
|---|---|
| Bore size | 16, 20, 25, 32 |
| Port size | Rc1/8 |
| Medium | Air |
| Operating pressure range | 0.1~1 MPa |
| Proof pressure | 1.5 MPa |
| Ambient temperature | －5~＋60℃ (No freezing) |
| Lubrication | Not required |
| Cushion | NBR spacer |
| Stable rotation time | 0.2~1.0 s/90° |
| Allowable kinetic energy | 0.007J, 0.040J, 0.081J, 0.32J |
| Sensor switch | RCD |
| Weight | 0.7~3.07 kg |
| Remark | * The shock absorber is expendable. Replace when damping performance decrease. |
