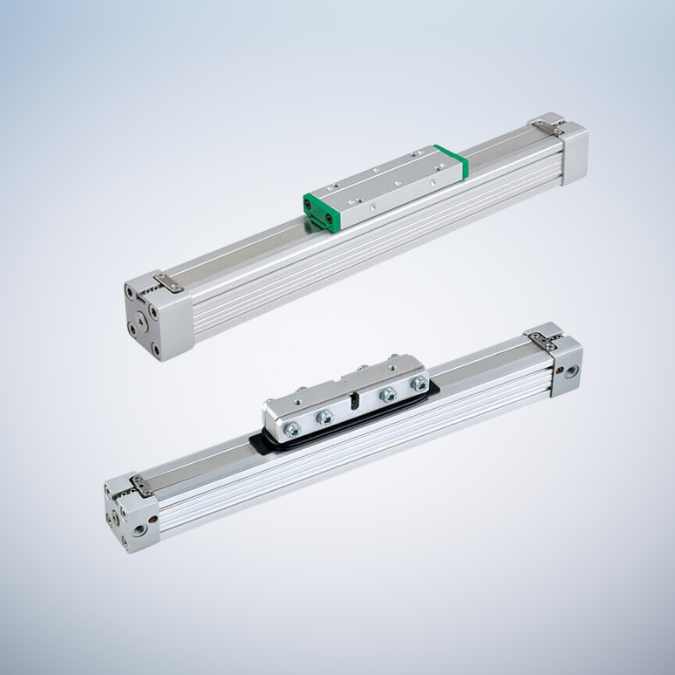

Tube I.D. φ 16, 25, 32, 40, 50, 63 (mm). 50% space saving when compared to conventional cylinders. Multi ported endcaps as standard.
- 50% space saving when compared to conventional cylinders.
- Multi ported endcaps as standard.
- Reed switches available.
- Magnetic as standard.
| Acting type | Double acting |
|---|---|
| Tube I.D. (mm) | MCRPL:16,25,32,40 / MCRPLF:16,25,32,40,50,63 |
| Port size | MCRPL:M5~G1/4 / MCRPLF:M5~G3/8 |
| No. of port | 3 |
| Medium | Air |
| Operating pressure range | 0.1~0.78 MPa |
| Ambient Temperature | －10℃ ~ +80℃ (No freezing) |
| Lubrication | With or Without lubrication |
| Cushion | With adjustable cushion at both ends |
| Stroke range (※1) | φ16: 100~3000 mm / φ25~63: 100~5600 mm |
| Sensor switch | RCAL |
| Sensor switch holder | HPL |
| Remark | ※1. Minimum stroke unit 1mm. ※2. The tube isn’t airtight, so the cylinder is allowed little leakage. Before the cylinder is sale, it has passed the standard of leakage test. |
