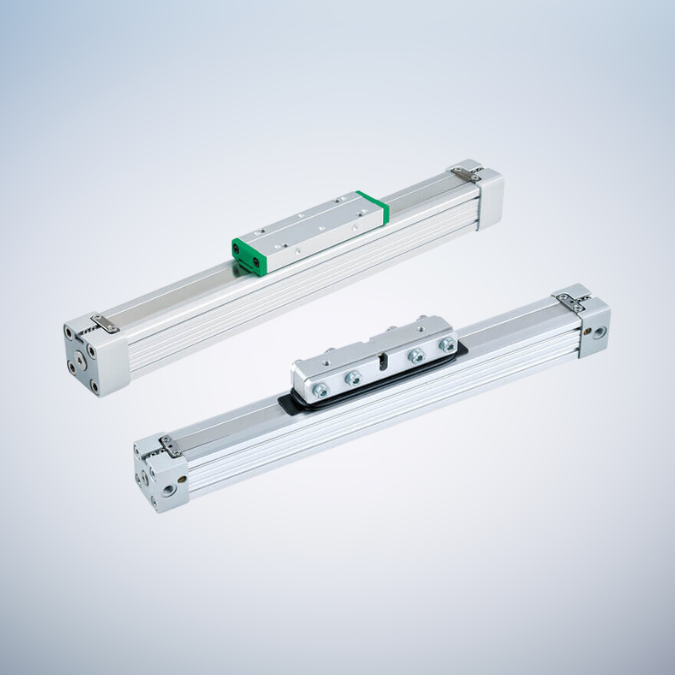

50% space saving when compared to conventional cylinders. Multi ported endcaps as standard. Reed switches available. Magnetic as standard.
- 50% space saving when compared to conventional cylinders.
- Multi ported endcaps as standard.
- Reed switches available.
- Magnetic as standard.
| Acting type | Double acting |
|---|---|
| Tube I.D.(mm) | MCRPL2: 16,25,32,40 / MCRPLF2: 16,25,32,40,50,63 |
| Port size | MCRPL2: M5~G1/4 / MCRPLF2: M5~G3/8 |
| No. of port | 3 |
| Medium | Air |
| Operating pressure range | 0.1~0.78 MPa |
| Stroke range (※1) | φ16：100~3000 mm / φ25~63：100~5600 mm |
| Ambient Temperature | -10℃ ~ +80℃ (No freezing) |
| Lubrication | With or Without lubrication |
| Cushion | With adjustable cushion at both ends |
| Sensor Switch | RDT |
| Sensor Switch Holder | HPL2 |
| Remark | ※1: Minimum stroke unit 1mm. ※2: The tube isn’t airtight, so the cylinder is allowed little leakage. Before the cylinder is sale, it has passed the standard of leakage test. |
