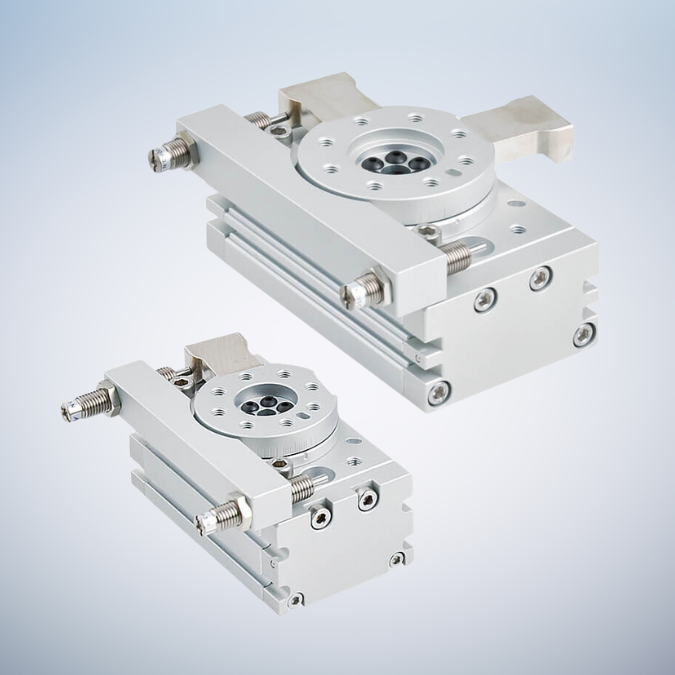

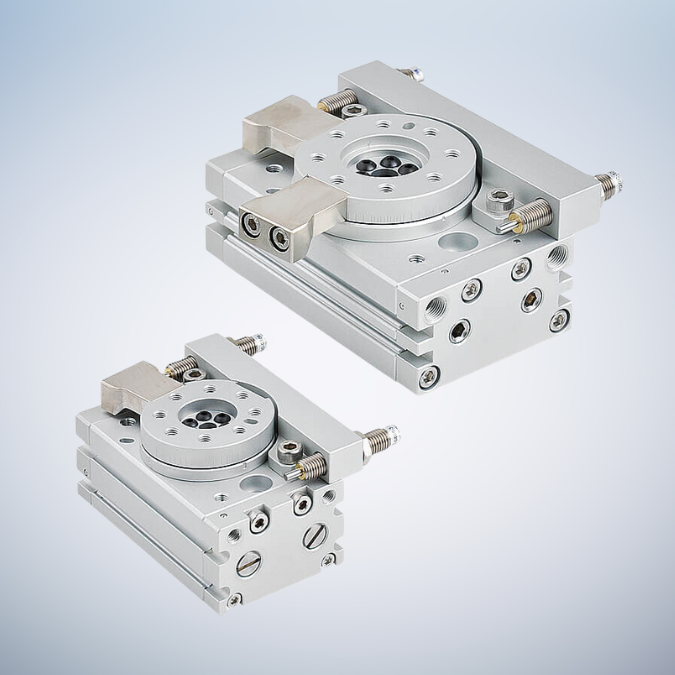

Tube I.D. φ 16, 20, 25 (mm). Rotation angle 90°, 180°, Allowable kinetic energy are 4 to 10 times more than MCRQ.
- Allowable kinetic energy are 4 to 10 times more than MCRQ.
- Shorter profile length compare with MCRQ.
- The required installation space of piston axial direction is decreased due to there is no adjusting bolt or internal shock absorber.
| Acting type | Double acting |
|---|---|
| Tube I.D. (mm) | φ16, φ20, φ25 |
| Port size | φ16 (M5×0.8), φ20, φ25 (Rc1/8) |
| Medium | Air |
| Rotation | 90°, 180° |
| Max. operating pressure | 1 MPa (※1) |
| Min. operating pressure | 0.2 MPa |
| Ambient temperature | 0~＋60℃ (No freezing) |
| Allowable kinetic energy (J) | φ15 (0.231), φ20 (1.21), φ25 (1.82) |
| Rotation time adjustment range (s/90°) | 0.2~1.0 (※2) |
| Cushion | Shock absorber |
| Shock absorber type | φ16 (MDSC-0806-3N), φ20 (MDSC-1008-3N), φ25 (MDSC-1412-3N) |
| Angle adjustment range | Each rotation end ±3° |
| Weight | 90°: 0.67, 1.55, 2.52 kg, 180°: 0.64, 1.48, 2.41 kg |
| Sensor switch | RDFE(V): Without contact, RNF(V): NPN, RPF(V): PNP |
| Remark | ※1. The maximum operating pressure of the actuator is restricted by the maximum allowable thrust of the shock absorber. ※2. For stable operation the time required for the rotary table to reach the rotation end after deceleration differs depending on the operating conditions (inertial moment of the load, rotation speed, and operating pressure), however, approximately 0.2 to 2 seconds are required. |
