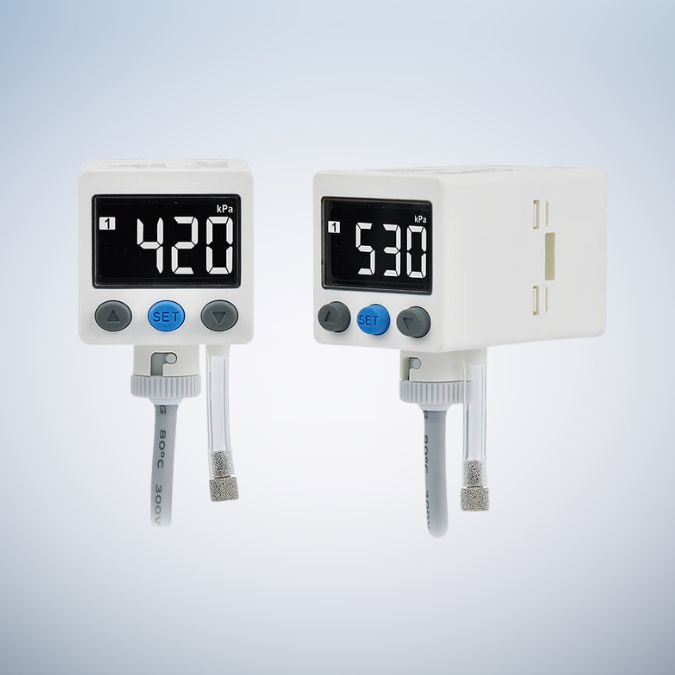

Digital LCD display. IP65 enclosure. Pressure range : 0 ~ 1000 kPa. RS485 Modbus RTU. High-resolution ( 10x ). Selectable NPN or PNP open collector.
- Digital LCD display
- IP65 enclosure
- Pressure range : 0 ~ 1000 kPa
- RS485 Modbus RTU
- High-resolution ( 10x )
- Selectable NPN or PNP open collector
| Rated pressure range | –1000 ~ 1000 kPa |
|---|---|
| Operating pressure range | 0 ~ 1000 kPa |
| Withstand pressure | 1200 kPa |
| Fluid | Filtered air, Non-corrosive / Non-flammable gas |
| Power supply voltage | 12 ~ 24 V DC ± 10 %, Ripple ( P-P ) ≤ 10 % |
| Current consumption | ≤ 20 mA |
| Communication interface | RS485 RTU |
| Port size | M5 : M5 female thread |
| Lead wire | ø4 Oil-resistance cable ( PVC ) – 26 AWG ( 0.15 mm² ) – 5 cores |
| Weight ( with 2 meter lead wire ) | Approx. 104 g |
