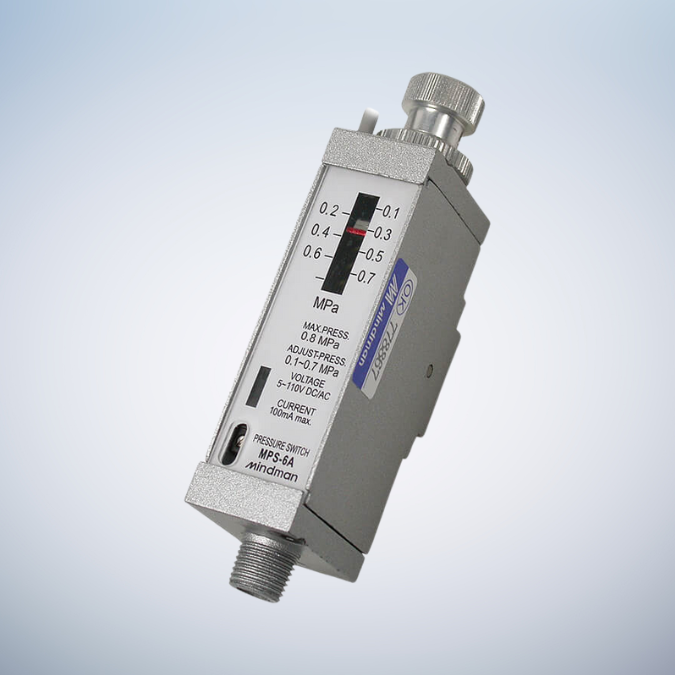

Operating pressure range: 0.8 MPa,Proof pressure: 1 MPa.
| Fitting method | R1/8 (for pipe-thread fitting) , O-ring:S4 (for O-ring fitting) |
|---|---|
| Operating pressure range | 0.8 MPa |
| Proof pressure | 1 MPa |
| Pressure setting range | 0.1~0.7 MPa |
| Ambient temperature | －5~＋60℃ (No freezing) |
| Operation output | Normal open ON (Red led lighting up) above value |
| Sensor switch | RCE2 Reed switch / Normal open Voltage range:5~110V DC/AC Max. Current:100mA |
| Weight | 185g , 189g (R type) |
