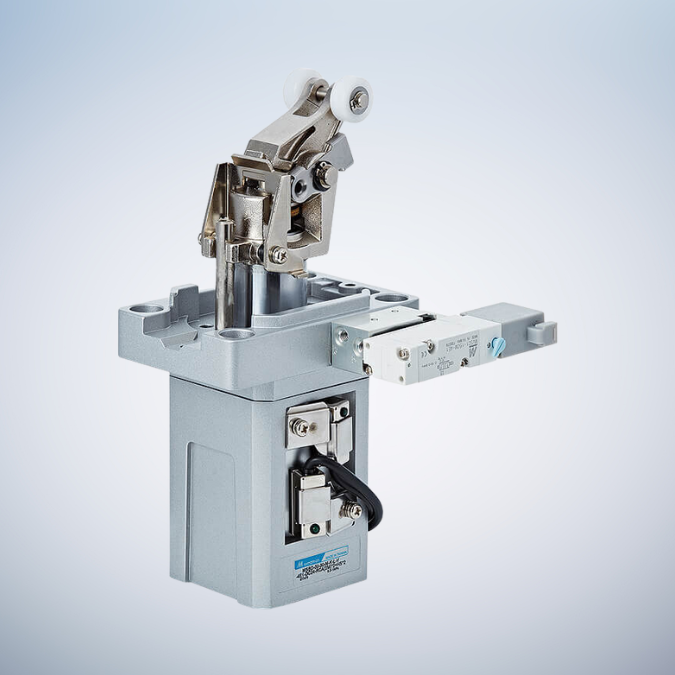

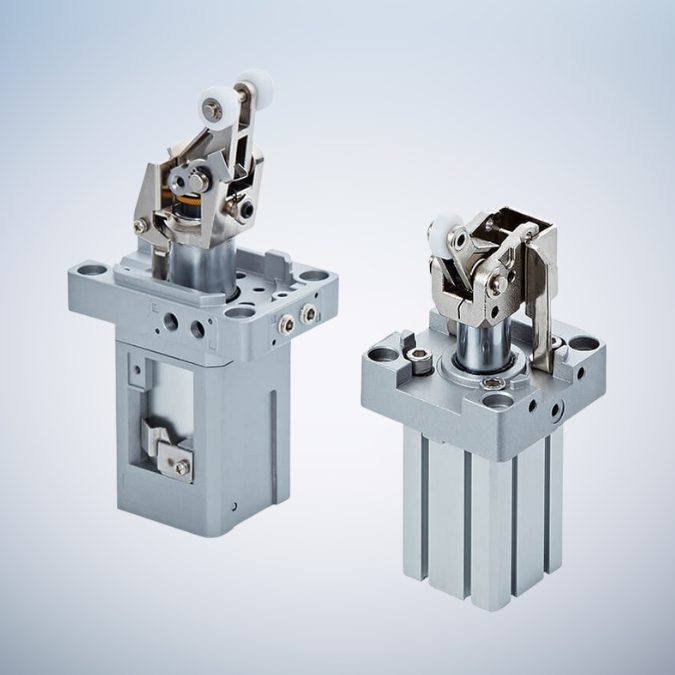

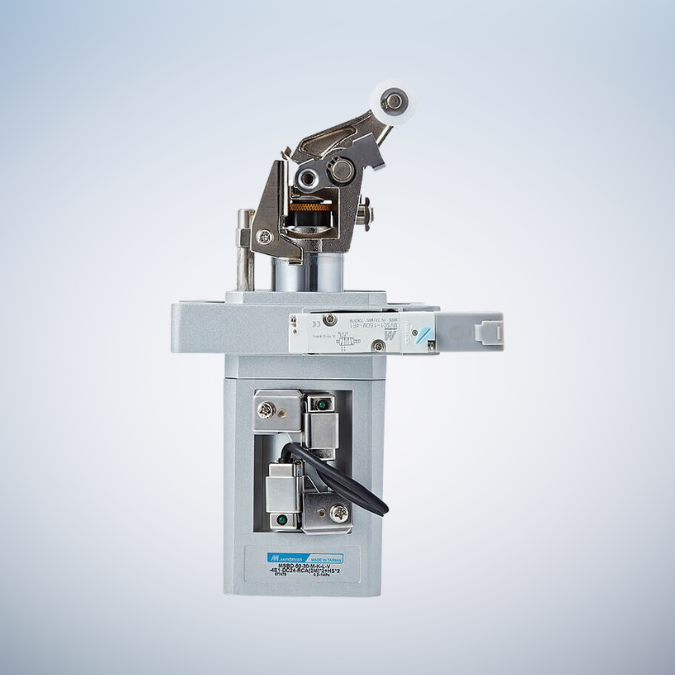

Tube I.D. φ 32, 50, 63, 80 (mm). Vertical mounting type. Optional lever-lock and free-pass accessories. Optional proximity sensor. Built-in roller and shock absorber. High damping performance.
| Operation type | Double acting with spring (φ32-20), Shockless stopper (φ50-30,φ63-30,φ80-40) |
|---|---|
| Standard stroke | φ32-20,φ50-30,φ63-30,φ80-40 |
| Medium | Air |
| Operating pressure range | 0.2~1 MPa |
| Proof pressure | 1.5 MPa |
| Ambient temperature | －5~＋60℃ (No freezing) |
| Lubrication | Not required |
| Cushion | With rubber cushion pad |
| Magnet | Standard with magnet |
| Sensor switch | RCA for φ50 , RCB, RCE, RCE1, RDEP |
| Sensor switch holder | HS |
| Weight | 740g, 1800g, 3680g, 6820g |
