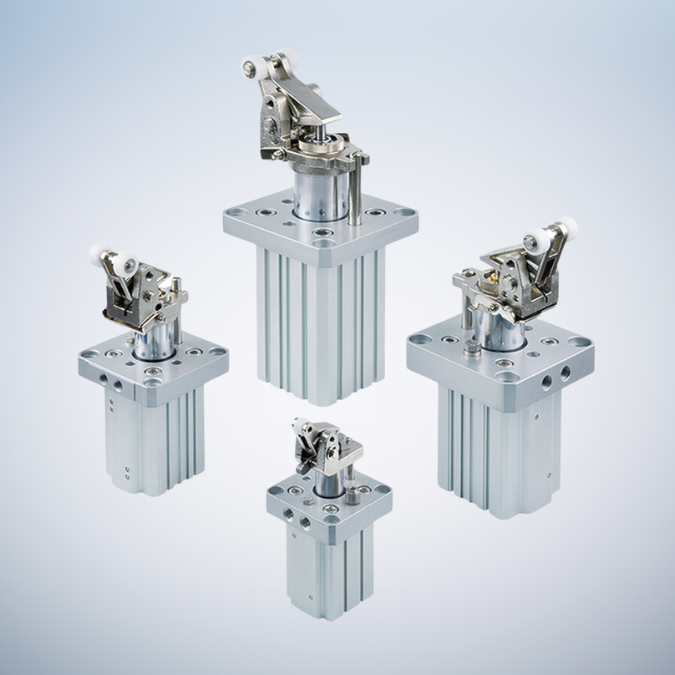

Tube I.D. φ 32, 50, 63, 80 (mm), Vertical mounting type, Optional patented lever-lock and free-pass mechanism, Optional proximity sensor, Built-in roller and shock absorber, High damping performance, Easy shock absorber replacement.
- Patented lever-lock mechanism.
- Proximity sensors are available.
- Adjustable shock absorber with easy replacement design.
- Magnetic as standard.
| Standard stroke | φ32-20, φ50-30, φ63-30, φ80-40 mm |
|---|---|
| Medium | Air |
| Operating pressure range | 0.2~1 MPa |
| Proof pressure | 1.5 MPa |
| Ambient temperature | －5~＋60℃ (No freezing) |
| Lubrication | Not required |
| Cushion | External stopper: Adjustable shock absorber Internal cylinder: NBR cushion pad |
| Sensor switch | RDFE (V) |
| Proximity sensor | RJY |
| Weight | 550g, 1930g, 3410g, 6340g |
