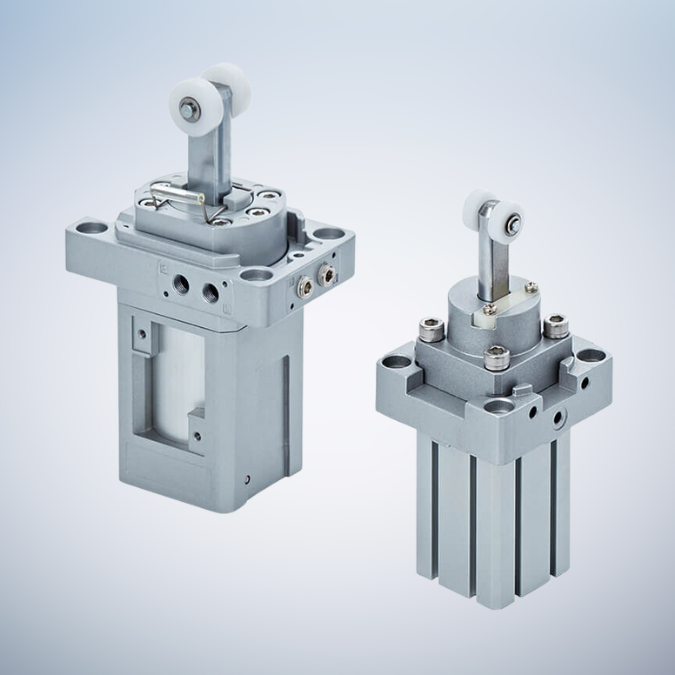

Tube I.D. φ 20, 32, 40, 50 (mm)，Vertical moutning type. Built-in roller.
| Operation type | Single acting (Spring extended), Stopper with roller |
|---|---|
| Standard stroke | φ20-20, φ32-20, φ40-30, φ50-30 |
| Medium | Air |
| Operating pressure range | 0.2~1 MPa |
| Proof pressure | 1.5 MPa |
| Ambient temperature | －5~＋60℃ (No freezing) |
| Lubrication | Not required |
| Cushion | With rubber cushion pad |
| Magnet | φ20-20, φ32-20 : With magnet φ40-30, φ50-30 : Without magnet |
| Sensor switch | RCB, RCE, RCE1, RDEP |
| Weight | 250g, 740g, 1400g, 1800g |
