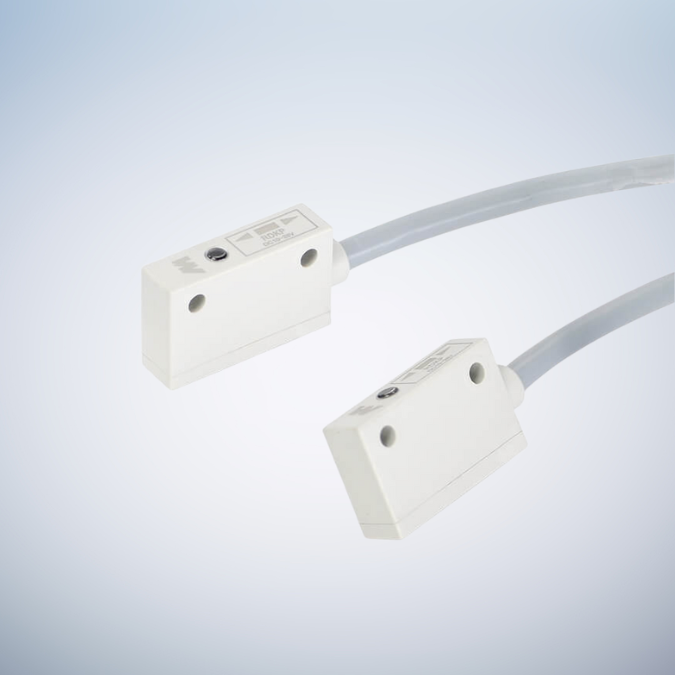

Assembling style: MCKG.
- RDKP can be applied in the strong magnetic field environment such as automotive manufacturing or areas near welding machine.
- When RDKP detects the magnetic AC field (50 or 60Hz) it will keep the status of output and will not be effected.
| Wiring method | 2 wire |
|---|---|
| Switching logic | Solid state output, normally open |
| Switch type | Current sourcing |
| Operating voltage | 10~28V DC |
| Switching current | 5~50mA max. |
| Switching rating | 1.5W max. (※1) |
| Voltage drop | 5V max. |
| Leakage current | 1mA max. |
| Indicator | Unstable: Red LED ; Stable: Green LED |
| Cable | φ5.4, 2C, PVC |
| Temperature range | －10℃~＋60℃ (No freezing) |
| Shock | 30G (※2) |
| Vibration | 9G (※3) |
| Enclosure classification | IEC 60529 IP67 |
| Protection circuit | 3 , 4 (※4) |
| Weight | 120g (3m cable) |
| Remark | ※1. Warning: Never exceed rating (watt=voltage×amperage). Permanent damage to sensor will occur. ※2. Sin wave / X.Y.Z. 3 directions / 3 times each direction / 11ms each time. ※3. Double amplitude 1.5mm / 10Hz~55Hz~10Hz(Sweep 1min) / X.Y.Z. 3 directions / 1 hour each time. ※4. 1=None / 2=Short-circuit / 3=Power source reverse polarity / 4=Surge suppression. |
