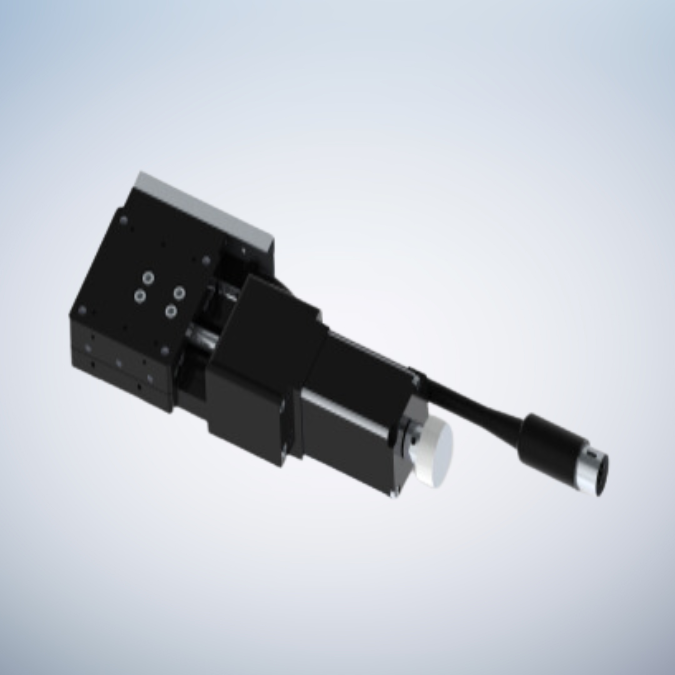

Characteristic:
It adopts a thin platform with high rigidity crossed linear guide structure and integrated motor electronic control connection ; module
Optimized structural design, multi-axis free combination, achieving high rigidity and high precision modular structural units.
Its characteristics are as follows :
-Corresponding to multi-axial working requirements
By installing modules with the required number of axes, it can be freely adapted to various work applications .
-Mechatronic design
The motor, sensing element, connecting wire set, integrated design, anti-interference, easy and convenient subsequent maintenance .
-Ultra- thin, lightweight and stable
Because it uses VR roller modules and aerospace aluminum body, it achieves a thin, light and stable mechanism .
-High rigidity and high precision
Preload is applied to the cross linear guide rails that make up the module, and it is equipped with precision-grade ball guide screws . It is a high-precision
High strength and high rigidity structure .
-High stability, low vibration, low noise
The rotary table has an ingenious design and an integrated structure. It is equipped with precision-grade worm gears and worm components to perform rotational displacement.
, showing the operating characteristics of high precision, high stability, low vibration and low noise.

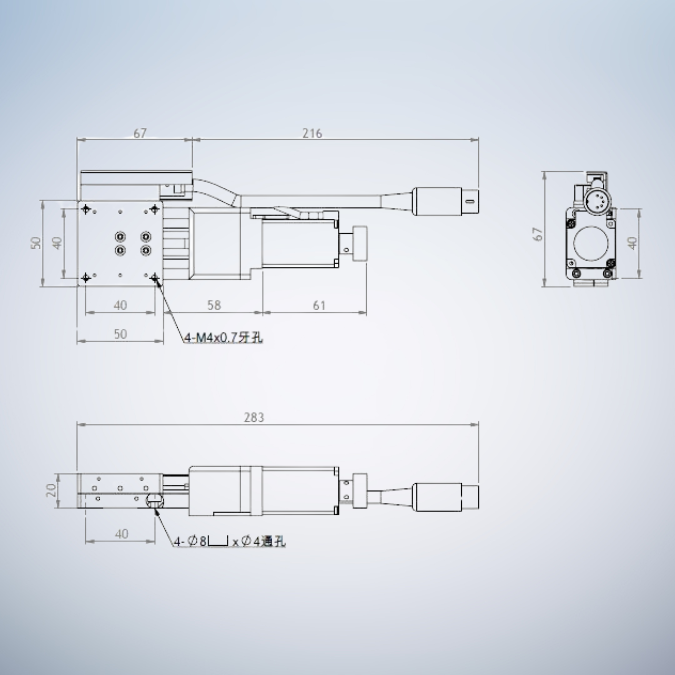

| Product name | Countertop size (mm) |
Moving stroke (mm) |
Dynamic load (kgf) |
Parallel accuracy (μm) |
Repeated positioning accuracy (μm) |
Motion linear accuracy (μm) |
Movement parallel accuracy (μm) |
Max maximum speed (mm/sec) |
Screw lead (mm) |
Body weight (kg) |
Body material | surface treatment |
| X-STWS-050A-C1 | 50 × 50 | ±7.5 | 5(49N) | 20 | ±1 | 3 | 10 | 10 | 1 | 0.7 | Aluminum alloy | black aluminum treatment |
| X-STWS-050A-C5 | 50 × 50 | ±7.5 | 5(49N) | 20 | ±5 | 3 | 10 | 10 | 1 | 0.6 | Aluminum alloy | black aluminum treatment |
