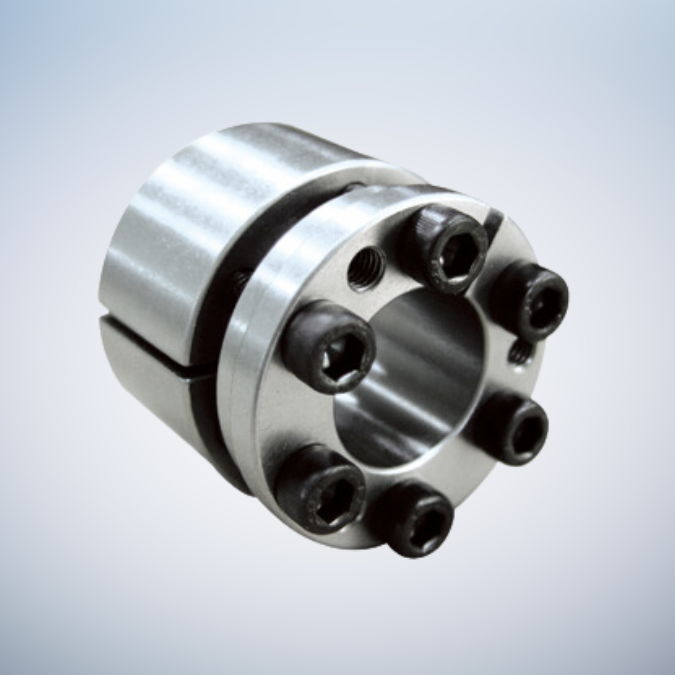

TSD Keyless Collar GSD

Characteristic:

– Automatic heart-centering.

– Widely used for clamp-type parts.

-A wide range of applications.

– Low cost solution for average high torque.

– Please refer to our installation instructions on the website.

– GSD body: AISI 1045 alloy steel material.

Product number	Screw tightening torque TS (Nm)	Transmitted torque T (Nm) under TS	Axial thrust F (KN)	Hub surface pressure P (N/mm㎡)	Weight kg
GSD-20	17	550	55	100	0.37
GSD-22	17	600	55	100	0.37
GSD-24	17	660	55	100	0.40
GSD-25	17	680	55	100	0.40
GSD-28	17	720	55	100	0.44
GSD-30	17	820	55	100	0.53
GSD-32	17	1400	80	130	0.52
GSD-35	17	1400	80	130	0.50
GSD-38	17	1600	80	130	0.60
GSD-40	17	1600	110	130	0.58
GSD-42	41	2500	110	130	1.00
GSD-45	41	2500	150	130	0.97
GSD-48	41	3700	150	170	1.08
GSD-50	41	3700	150	170	1.05
GSD-55	41	4100	150	160	1.14
GSD-60	41	4500	160	160	1.18
GSD-65	41	4500	160	150	1.26
GSD-70	83	8400	240	150	2.25
GSD-75	83	8400	240	140	2.43
GSD-80	83	9600	250	140	2.60
GSD-85	83	11000	250	150	2.70
GSD-90	83	13000	300	150	2.80
GSD-95	83	13000	300	150	3.00
GSD-100	145	17500	350	150	4.10
GSD-110	145	20000	300	150	4.40
GSD-120	145	21300	330	150	4.80
GSD-130	145	28000	350	150	5.70
GSD-140	190	30400	350	150	6.20
GSD-150	190	39000	400	160	7.10
GSD-160	190	41700	400	170	8.00
GSD-170	190	52000	460	160	11.00
GSD-180	190	55000	460	170	12.10
