Features:
Slim platform adopts cross roller bearing, Module structure design and multi-axes
combination realize module structure unit with high rigidity and high precision.
Features listed below：
– Meet requirement for multi motion axes
With combination of many sets, many application scan be resolved freely.
– Ultra slim, light weight, stability
With adoption of VR roller module and aero aluminum body, slim, light
and stable mechanism can be realized.
– High rigidity, High precision
Preloaded Crossed type roller Bearing and high, precise micrometer head sustain,
high precision and high rigidity of mechanism.
| Product No | Direction Of Movement ( mm ) |
Table Size ( mm ) |
Mobile Volume ( mm ) |
Fine Tuning Volume ( μm ) |
Mobile Accuracy ( μm ) |
Parallel Precision ( μm ) |
Load Resistance ( kgf ) |
Mass** ( kg ) |

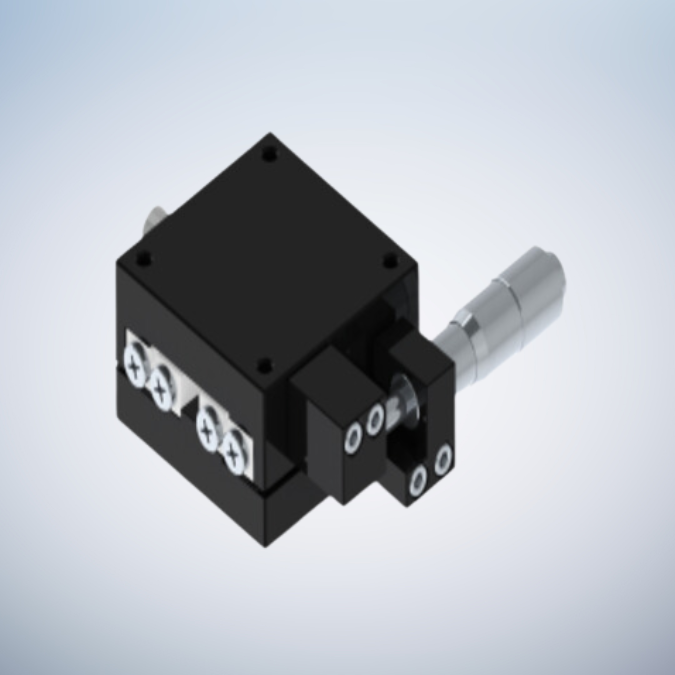

| X-TS050AR | X Axis | 50 × 50 | ± 6.5 | 10 | 5 | 30 | 5 ( 49N ) | 0.4 |
