Characteristic:
It adopts a thin platform with high rigidity cross linear guide structure, modular structure design, and multi-axis freedom.
The combination realizes a high rigidity and high precision module structure unit. Its features are as follows:
-Corresponding to multi-axial processing requirements
By installing the modules with the required number of axes, you can freely respond to various work applications.
-Ultra- thin, lightweight, stable
The VR roller module is used in combination with the aerospace aluminum body to achieve a thin, light and stable structure.
-High rigidity and high precision
The cross linear guide rails that make up the module are preloaded and equipped with a precision micrometer to achieve high precision and high rigidity.
The structure of sex.
| Product Number | Direction of movement | Table size (mm) |
Movement (mm) |
Fine adjustment amount (μm) |
Movement accuracy (μm) |
Parallel accuracy (μm) |
Load bearing capacity (kgf) |
Mass (kg) |

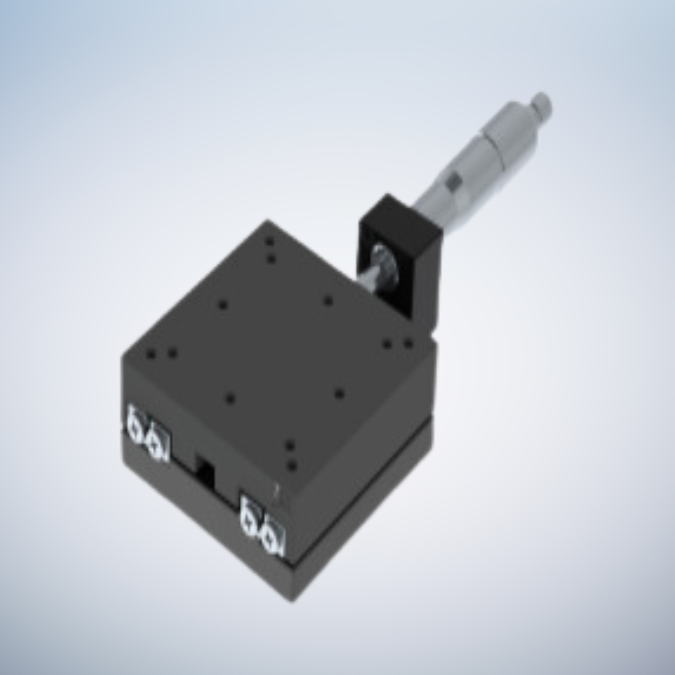

| X-TS075AC | X-Axis | 75 × 75 | ± 12.5 | 10 | 5 | 30 | 10 ( 98N ) | 0.65 |
