Characteristic:

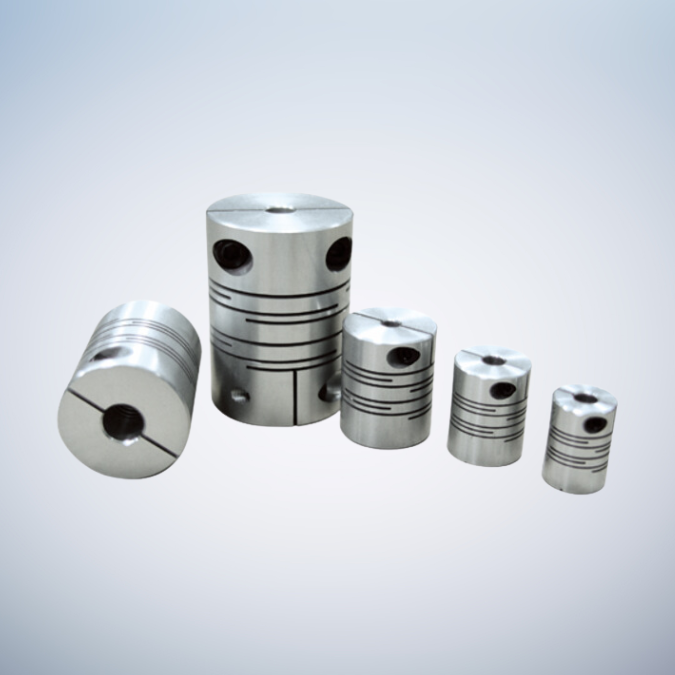

– Integrated slit-cut metal flexible coupling.
– Zero force.
– Through elasticity, it perfectly absorbs shaft offset, angular deviation, and shaft end position difference.
– High torque, high load.
– The clockwise and counterclockwise rotation characteristics are exactly the same.
– Maintenance free, oil and chemical resistant.
– Clamp screw type fixation.
– MFC-C body: aluminum alloy material.
– MFCS-C body: stainless steel material.
| Product number | Common torque (Nm) |
Maximum torque (Nm) |
Maximum number of revolutions (min -1 ) |
Inertia (kg.㎡) |
Allowable eccentricity (mm) |
Allowable angular deviation (°) |
Allowable axial displacement (mm) |
Mass (g) |
| MFC-16C | 0.3 | 0.6 | 9500 | 3.5×10-7 | 0.10 | 2° | ±0.4 | 9.1 |
| MFC-20C | 0.5 | 1.0 | 7600 | 8.7×10-7 | 0.10 | 2° | ±0.4 | 16.5 |
| MFC-25C | 1.1 | 2.2 | 6100 | 2.2×10-6 | 0.15 | 2° | ±0.5 | 29.0 |
| MFC-32C | 2.0 | 4.0 | 4800 | 9.1×10-5 | 0.15 | 2° | ±0.5 | 67.0 |
| MFC-40C | 5.0 | 10.0 | 3800 | 2.9×10-4 | 0.20 | 2° | ±0.5 | 138.0 |
| MFC-50C | 10.0 | 20.0 | 3100 | 1.3×10-4 | 0.20 | 2° | ±0.5 | 260.0 |
| MFCS-16C | 0.5 | 1.0 | 9500 | 9.2×10-7 | 0.10 | 2° | ±0.3 | 27.0 |
| MFCS-20C | 1.0 | 2.0 | 7600 | 2.5×10-6 | 0.10 | 2° | ±0.3 | 45.0 |
| MFCS-25C | 2.1 | 4.2 | 6100 | 7.4×10-6 | 0.15 | 2° | ±0.4 | 87.0 |
| MFCS-32C | 3.5 | 7.0 | 4800 | 2.7×10-5 | 0.15 | 2° | ±0.5 | 180.0 |
