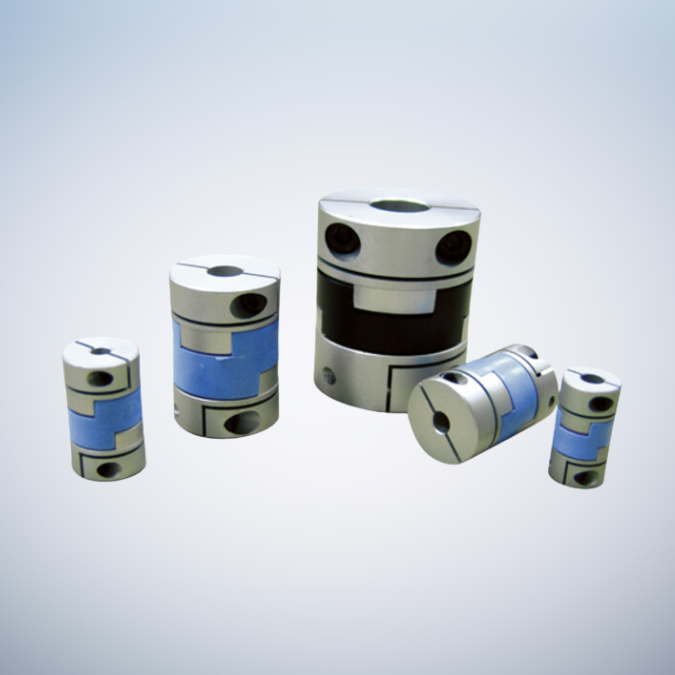

Characteristic:
– Use the hub and spacer ring slip rings to obtain a maximum allowable eccentricity and angular deflection.
– The shaft load caused by deviation is small, which can reduce the load on the shaft.
– High torque components, high sensitivity response.
– Simple design, easy to assemble.
– Maintenance-free, excellent oil resistance and green-proof.
– Possible operating temperature : -20℃~80℃ .
– Standardization of products with different hole diameters at both ends.
– Clamp screw type fixation.
– MFL-C body: aluminum alloy material.
| Product number | Common torque (Nm) |
Maximum torque (Nm) |
Maximum number of revolutions (min -1 ) |
Inertia (kg.㎡) |
Allowable eccentricity (mm) |
Allowable angular deviation (°) |
Mass (g) |
| MFL-16C | 0.7 | 1.4 | 9500 | 5.0×10-7 | 1.0 | 3° | 11.5 |
| MFL-20C | 1.2 | 2.4 | 7600 | 1.3×10-6 | 1.5 | 3° | 19.0 |
| MFL-25C | 2.0 | 4.0 | 6100 | 3.9×10-6 | 2.0 | 3° | 36.0 |
| MFL-32C | 4.5 | 9.0 | 4800 | 1.2×10-5 | 2.5 | 3° | 68.0 |
| MFL-40C | 9.0 | 18.0 | 3800 | 3.5×10-5 | 3.0 | 3° | 130.0 |
| MFL-50C | 18.0 | 36.0 | 3100 | 1.0×10-4 | 3.5 | 3° | 230.0 |
