Characteristic:

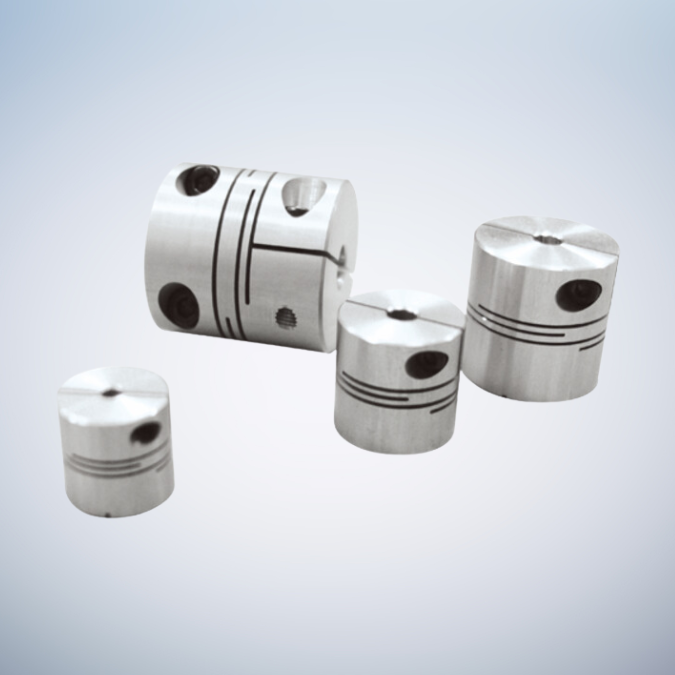

– Integrated slit-cut metal flexible coupling.
– Zero force.
– Through elasticity, it perfectly absorbs shaft offset, angular deviation, and shaft end position difference.
– High torque, high load.
– The clockwise and counterclockwise rotation characteristics are exactly the same.
– Maintenance free, oil and chemical resistant.
– Clamp screw type fixation.

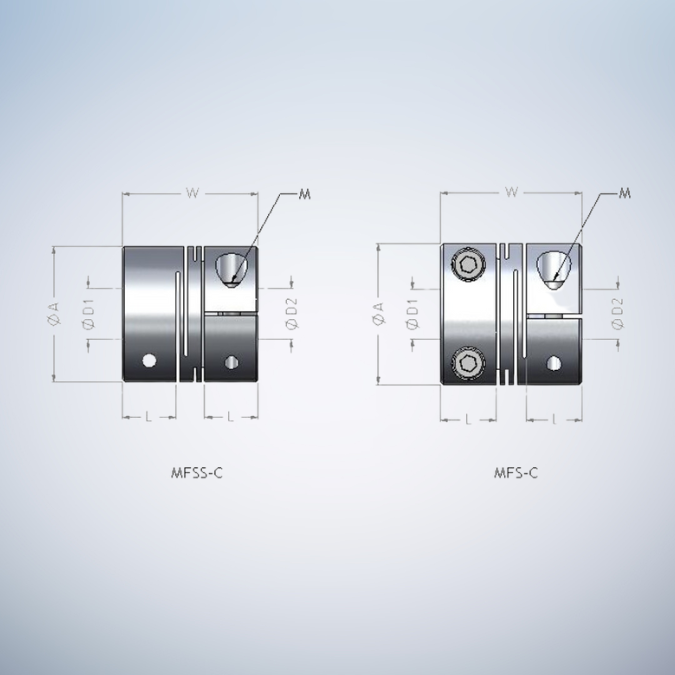

– MFS-C body: aluminum alloy material.
– MFSS-C body: stainless steel material.
| Product number | Common torque (Nm) |
Maximum torque (Nm) |
Maximum number of revolutions (min -1 ) |
Inertia (kg.㎡) |
Allowable angular deviation (°) |
Allowable axial displacement (mm) |
Mass (g) |
| MFS-16C | 0.3 | 0.6 | 9500 | 2.8×10-7 | 1° | ±0.2 | 8.1 |
| MFS-20C | 0.5 | 1.0 | 7600 | 7.5×10-7 | 1° | ±0.2 | 13.0 |
| MFS-25C | 1.1 | 2.2 | 6100 | 2.2×10-6 | 1° | ±0.2 | 25.0 |
| MFS-32C | 2.0 | 4.0 | 4800 | 8.1×10-6 | 1° | ±0.2 | 53.0 |
| MFS-40C | 5.0 | 10.0 | 3800 | 1.9×10-5 | 1° | ±0.3 | 110.0 |
| MFSS-16C | 0.5 | 1.0 | 9500 | 7.8×10-7 | 1° | ±0.1 | 21.0 |
| MFSS-20C | 1.0 | 2.0 | 7600 | 2.1×10-6 | 1° | ±0.1 | 36.0 |
| MFSS-25C | 2.1 | 4.2 | 6100 | 6.3×10-6 | 1° | ±0.2 | 70.0 |
| MFSS-32C | 3.5 | 7.0 | 4800 | 2.2×10-5 | 1° | ±0.2 | 150.0 |
