Characteristic:

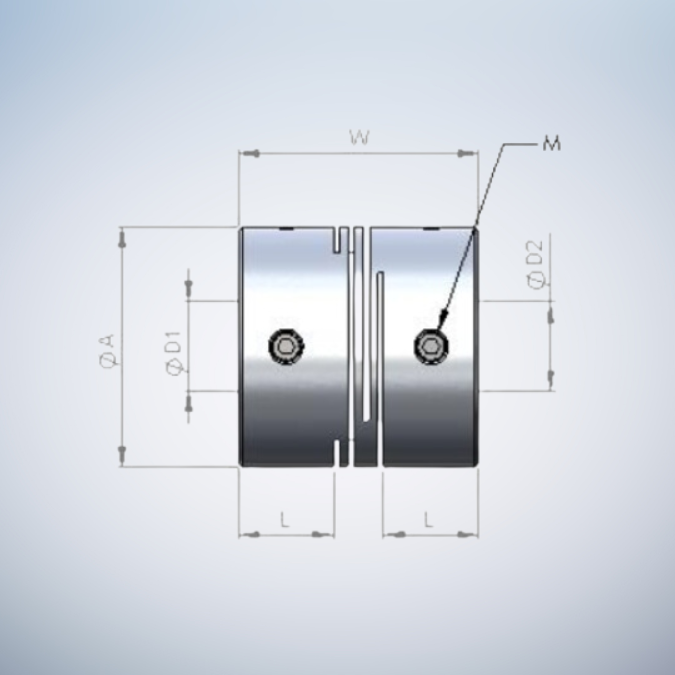

– Integrated slit-cut metal flexible coupling.
– Zero force.
– Through elasticity, it perfectly absorbs shaft offset, angular deviation, and shaft end position difference.
– High torque, high load.
– The clockwise and counterclockwise rotation characteristics are exactly the same.
– Maintenance free, oil and chemical resistant.
– Stop screw type fixation.
– MFS body: aluminum alloy material.
– MFSS body: stainless steel material.
| Product number | Common torque (Nm) |
Maximum torque (Nm) |
Maximum number of revolutions (min -1 ) |
Inertia (kg.㎡) |
Allowable angular deviation (°) |
Allowable axial displacement (mm) |
Mass (g) |
| MFS-16 | 0.3 | 0.6 | 24000 | 2.7×10-7 | 1° | ±0.2 | 7.4 |
| MFS-20 | 0.5 | 1.0 | 19000 | 7.6×10-7 | 1° | ±0.2 | 12.0 |
| MFS-25 | 1.1 | 2.2 | 15000 | 2.2×10-6 | 1° | ±0.2 | 24.0 |
| MFS-32 | 2.0 | 4.0 | 12000 | 8.0×10-6 | 1° | ±0.2 | 50.0 |
| MFS-40 | 5.0 | 10.0 | 9600 | 2.8×10-5 | 1° | ±0.3 | 98.0 |
| MFSS-16 | 0.5 | 1.0 | 24000 | 8.6×10-7 | 1° | ±0.1 | 18.0 |
| MFSS-20 | 1.0 | 2.0 | 19000 | 2.4×10-6 | 1° | ±0.1 | 32.0 |
| MFSS-25 | 2.1 | 4.2 | 15000 | 7.2×10-6 | 1° | ±0.2 | 63.0 |
| MFSS-32 | 3.5 | 7.0 | 12000 | 2.6×10-5 | 1° | ±0.2 | 130.0 |
